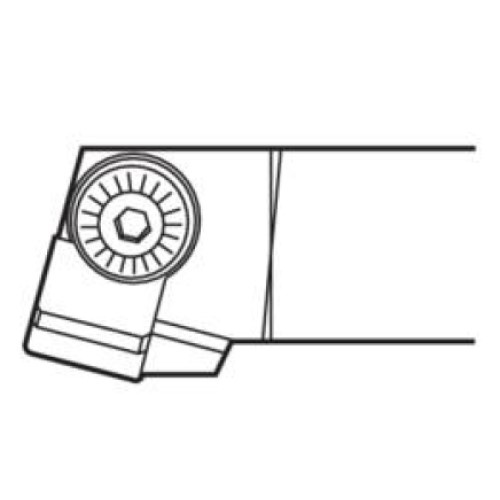

Seco Turning External Toolholder Clamp Lock 150 x 27 x 12mm Right 75° S Insert Shape CSRPR2525-12

Description

Seco Turning External Toolholder Clamp Lock 150 x 27 x 12mm Right 75° S Insert Shape CSRPR2525-12

Turning External Toolholder (Clamp Lock - R Type - S Insert Shape - 11° ISCA)

Clamp lock assembly.
S insert shape.
R tool type, offset shank with 15° side cutting edge angle.
11° (ISCA) Insert Side Clearance Angles.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114803

Brand Seco

Model Number 75006099

Barcode Number 6099750000105

Net Weight (kg) 0.721

Designation CSRPR2525-12

Type Turning Toolholder

Insert Clamping System (ICS) Clamp Lock

Shank Type Square shank

Insert Shape Code (SC) S

Functional Width (WF) mm 27

Cutting Edge Length (mm) 12

Inclination Angle (LAMS) 0.0 deg

Tool Cutting Edge Angle Code (KAPRC) R

Tool Type R Type

Functional Length (LF) 150mm

Rake Angle Orthogonal (gamo) 5.0 deg

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 75.0 deg

Connection Text Workpiece Side (ctws) SP1203

Shank Width (b) mm 25

Version (internal/external/both) External

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 2525
