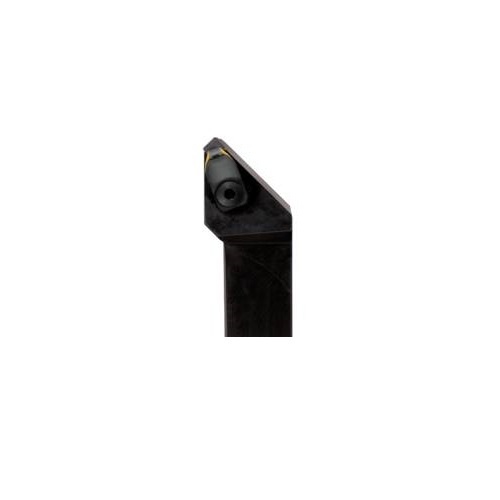

Seco Turning External Toolholder Clamp Lock 150 x 27 x 6mm Left 45° S Insert Shape CSSNL2525M06

Description

Seco Turning External Toolholder Clamp Lock 150 x 27 x 6mm Left 45° S Insert Shape CSSNL2525M06

Turning External Toolholder (Clamp Lock - S Type - S Insert Shape)

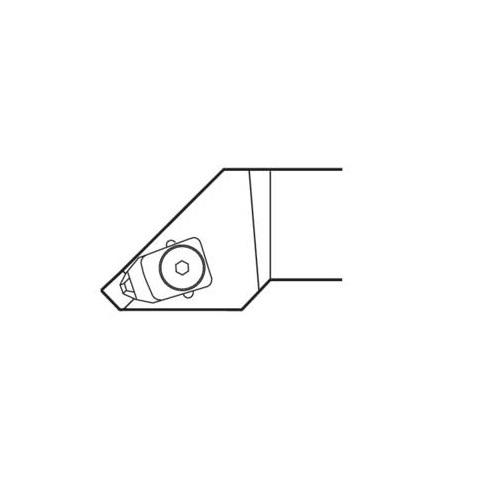

Clamp lock assembly.
S insert shape.
S tool type, offset shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114804

Brand Seco

Model Number 00005869

Barcode Number 5869000000107

Net Weight (kg) 0.73

Designation CSSNL2525M06

Type Turning Toolholder

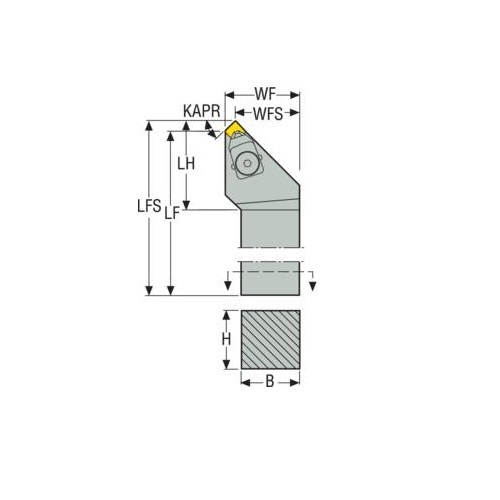

Functional Length (LF) 150mm

Rake Angle Orthogonal (gamo) -7.0 deg

Insert Shape Code (SC) S

Head Length (LH) 27mm

Functional Width (WF) mm 32.2

Cutting Edge Length (mm) 6

Inclination Angle (LAMS) 0.0 deg

Tool Cutting Edge Angle Code (KAPRC) S

Tool Type S Type

Connection Text Machine Side (CTMS) 2525

Insert Clamping System (ICS) Clamp Lock

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 45.0 deg

Connection Text Workpiece Side (ctws) SN0603

Shank Width (b) mm 25

Version (internal/external/both) External

Direction Of Cutting (hand) Left
