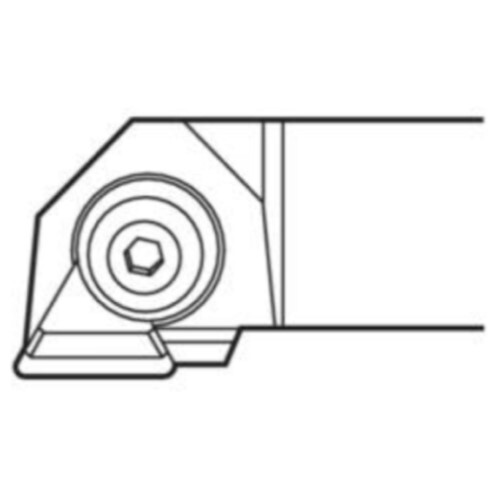

Seco Turning External Toolholder Clamp Lock 150 x 32.2 x 16mm Left 91° T Insert Shape CTGPL2525-16

Description

Seco Turning External Toolholder Clamp Lock 150 x 32.2 x 16mm Left 91° T Insert Shape CTGPL2525-16

Turning External Toolholder (Clamp Lock - G Type - T Insert Shape)

Clamp lock assembly.
T insert shape.
G tool type, offset shank with 0° side cutting edge angle.
11° (ISCA) Insert Side Clearance Angles.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114810

Brand Seco

Model Number 75005988

Barcode Number 5988750000103

Net Weight (kg) 0.71

Designation CTGPL2525-16

Type Turning Toolholder

Functional Length (LF) 150mm

Shank Type Square shank

Insert Shape Code (SC) T

Functional Width (WF) mm 32.2

Cutting Edge Length (mm) 16

Inclination Angle (LAMS) 1.0 deg

Tool Cutting Edge Angle Code (KAPRC) G

Cutting Diameter Internal Minimum (DCINN) 25mm

Tool Type G Type

Rake Angle Orthogonal (gamo) 5.0 deg

Insert Clamping System (ICS) Clamp Lock

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 91.0 deg

Connection Text Workpiece Side (ctws) TP1603

Shank Width (b) mm 25

Version (internal/external/both) External

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 2525
