Description

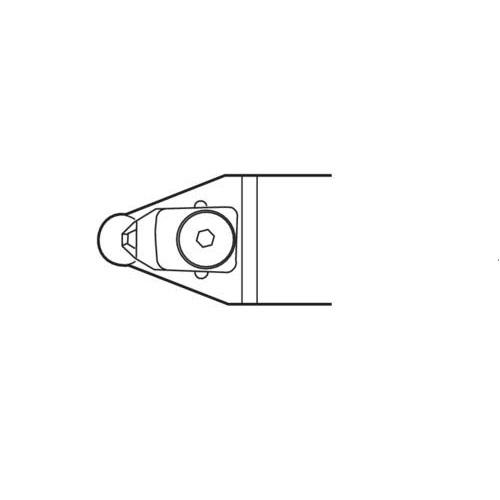

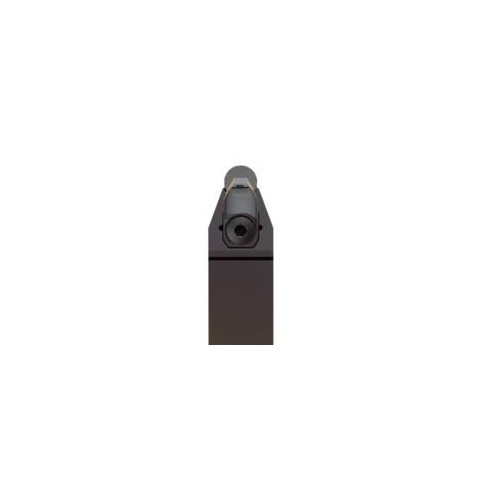

Seco Turning External Toolholder Clamp Lock 150 x 18.8 x 12mm Neutral 0° R Insert Shape CRDNN2525M12C

Turning External Toolholder (Clamp Lock - D Type - R Insert Shape - C Surface)

  • Insert clamping system - clamp lock assembly.
  • R insert shape.
  • D tool type, straight shank with 45° side cutting edge angle.
  • C surface qualified back and end, and length 5" long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115586
  • Brand Seco
  • Model Number 02926486
  • Barcode Number 26486029000104
  • Net Weight (kg) 0.695
  • Designation CRDNN2525M12C
  • Type Turning Toolholder
  • Insert Clamping System (ICS) Clamp Lock
  • Shank Type Square shank
  • Insert Shape Code (SC) R

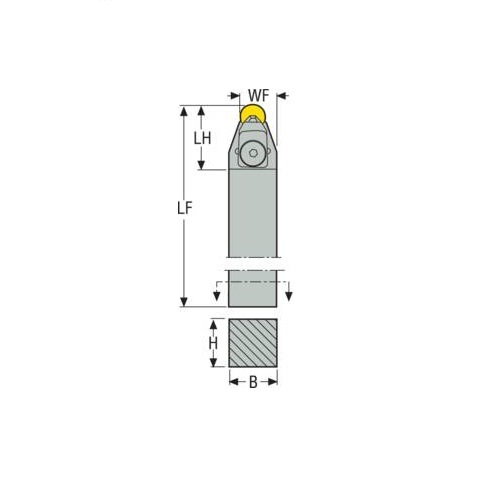

  • Head Length (LH) 32mm
  • Functional Width (WF) mm 18.8
  • Cutting Edge Length (mm) 12
  • Inclination Angle (LAMS) 0.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) D
  • Tool Type D Type
  • Functional Length (LF) 150mm
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Shank Length (LS) mm 118
  • Height Of Tool Holder Shank (H) mm 25
  • Tool Cutting Edge Angle (KAPR) 0.0 deg
  • Cutting Depth Maximum (cdx) mm 32
  • Connection Text Workpiece Side (ctws) RN1207
  • Shank Width (b) mm 25
  • Version (internal/external/both) External
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 2525

Video

SKU: A0115586

Seco Turning External Toolholder Clamp Lock 150 x 18.8 x 12mm Neutral 0° R Insert Shape CRDNN2525M12C

Clamp Lock - D Type - R Insert Shape - C Surface

$241.12
RRP $301.40
SAVE $60.28 (20%)
