Specifications

AIMS SKU A0114768
Brand Seco
Model Number 00073909
Barcode Number 73909000000101
Net Weight (kg) 1.3
Designation CRGNL-20-4

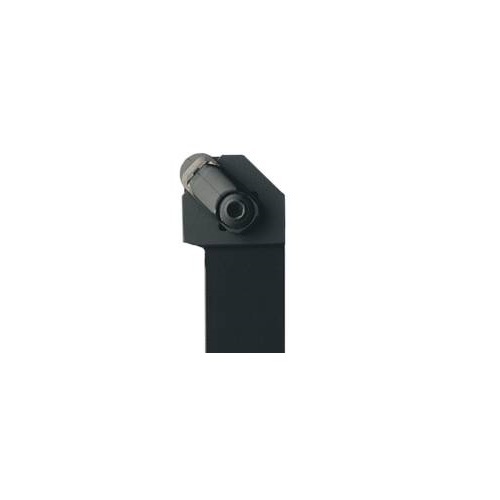

Type Turning Toolholder

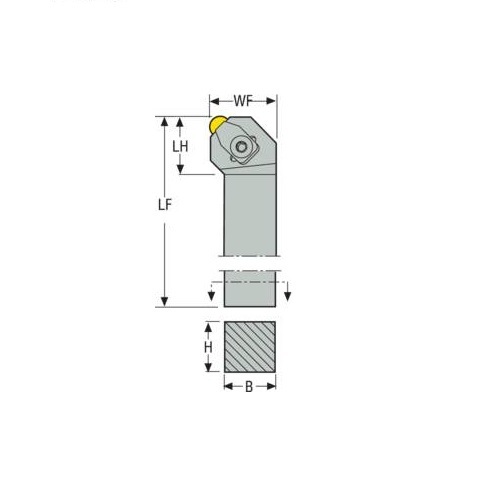

Functional Length (LF) 152.4mm
Shank Type Square shank
Insert Shape Code (SC) R
Insert Size Inscribed Circle Diameter (mm) 4
Functional Width (WF) mm 38.1
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -5.0 deg
Tool Cutting Edge Angle Code (KAPRC) S
Tool Type G Type
Rake Angle Orthogonal (gamo) -5.0 deg
Insert Clamping System (ICS) Clamp Lock
Height Of Tool Holder Shank (H) mm 31.8
Tool Cutting Edge Angle (KAPR) 0
Connection Text Workpiece Side (ctws) RN1203
Shank Width (b) mm 31.8
Version (internal/external/both) External
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 31.75
