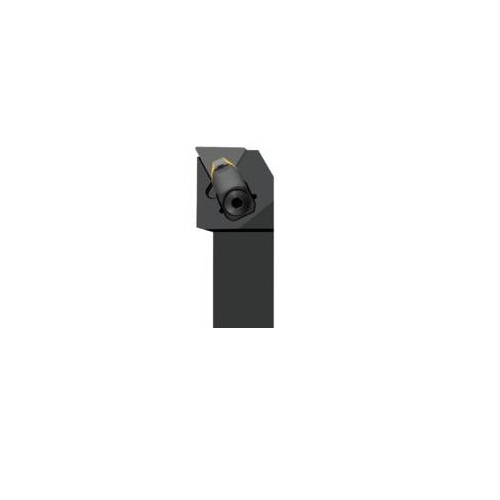

Seco Turning External Toolholder Clamp Lock 153 x 31.8 x 2mm Left 90° T Insert Shape CTFNL-16-2

Description

Seco Turning External Toolholder Clamp Lock 153 x 31.8 x 2mm Left 90° T Insert Shape CTFNL-16-2

Turning External Toolholder (Clamp Lock - F Type - T Insert Shape)

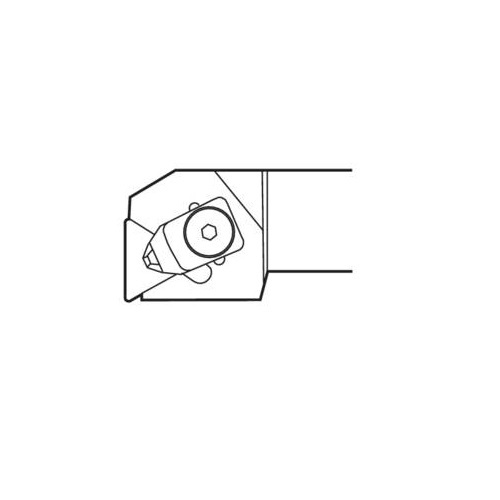

Clamp lock assembly.
T insert shape.
F tool type, offset shank with 0° end cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114808

Brand Seco

Model Number 00073863

Barcode Number 73863000000106

Net Weight (kg) 0.86

Designation CTFNL-16-2

Type Turning Toolholder

Insert Clamping System (ICS) Clamp Lock

Shank Type Square shank

Insert Shape Code (SC) T

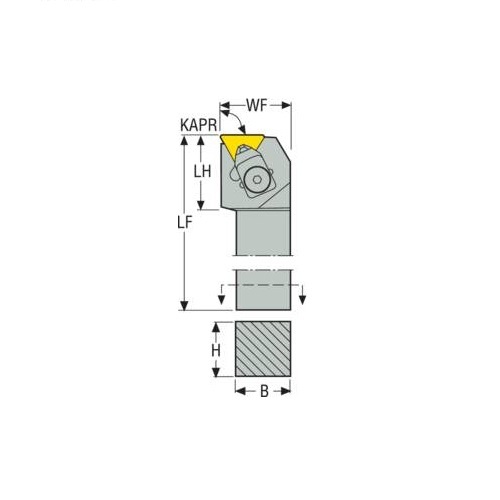

Functional Width (WF) mm 31.8

Cutting Edge Length (mm) 2

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) F

Tool Type F Type

Functional Length (LF) 153mm

Rake Angle Orthogonal (gamo) -6.0 deg

Height Of Tool Holder Shank (H) mm 25.4

Tool Cutting Edge Angle (KAPR) 90.0 deg

Connection Text Workpiece Side (ctws) TN1103

Shank Width (b) mm 25.4

Version (internal/external/both) External

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 25.4
