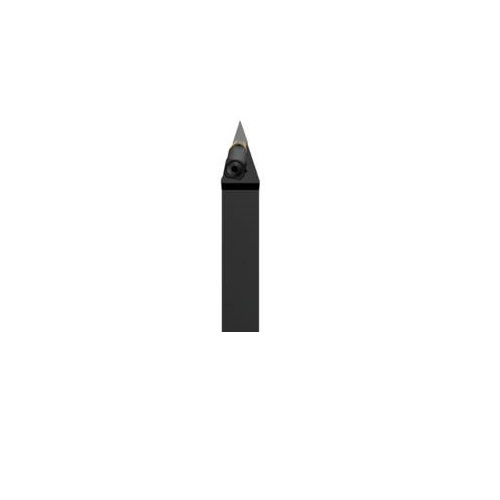

Seco Turning External Toolholder Clamp Lock 170 x 13.1 x 16mm Neutral 72.5° V Insert Shape CVVNN3225P16

Description

Seco Turning External Toolholder Clamp Lock 170 x 13.1 x 16mm Neutral 72.5° V Insert Shape CVVNN3225P16

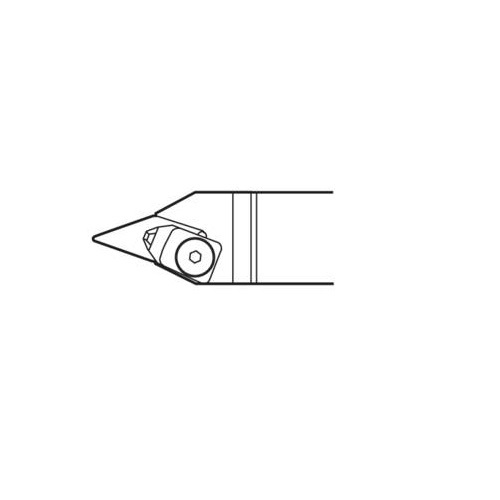

Turning External Toolholder (Clamp Lock - V Type - V Insert Shape)

Insert clamping system - clamp lock assembly.
V insert shape.
V tool type, straight shank with 17.5° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115588

Brand Seco

Model Number 00094012

Barcode Number 94012000000101

Net Weight (kg) 0.931

Designation CVVNN3225P16

Type Turning Toolholder

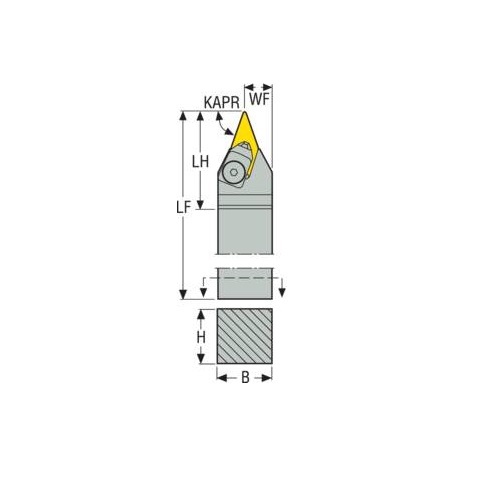

Functional Length (LF) 170mm

Shank Type Square shank

Insert Shape Code (SC) V

Head Length (LH) 42mm

Functional Width (WF) mm 13.1

Cutting Edge Length (mm) 16

Inclination Angle (LAMS) -5.0 deg

Tool Cutting Edge Angle Code (KAPRC) V

Tool Type V Type

Rake Angle Orthogonal (gamo) -15.0 deg

Insert Clamping System (ICS) Clamp Lock

Height Of Tool Holder Shank (H) mm 32

Tool Cutting Edge Angle (KAPR) 72.5 deg

Connection Text Workpiece Side (ctws) VN1604

Shank Width (b) mm 25

Version (internal/external/both) External

Direction Of Cutting (hand) Neutral

Connection Text Machine Side (CTMS) 3225
