Seco Turning External Toolholder Clamp Lock 170 x 26 x 9mm Right 0° R Insert Shape CRDCR3225P09C

Description

Seco Turning External Toolholder Clamp Lock 170 x 26 x 9mm Right 0° R Insert Shape CRDCR3225P09C

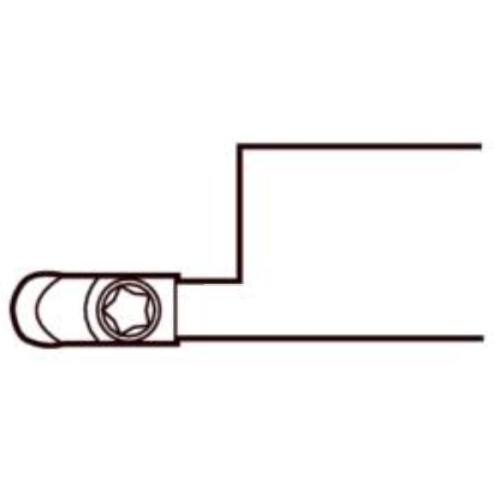

Turning External Toolholder (Clamp Lock - D Type - R Insert Shape - C Surface - 7° ISCA)

Insert clamping system - clamp lock assembly.
R insert shape.
D tool type, straight shank with 45° side cutting edge angle.
C surface qualified back and end, and length 5" long.
7° Insert Side Clearance Angles

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115596

Brand Seco

Model Number 02926480

Barcode Number 26480029000102

Net Weight (kg) 0.87

Designation CRDCR3225P09C

Type Turning Toolholder

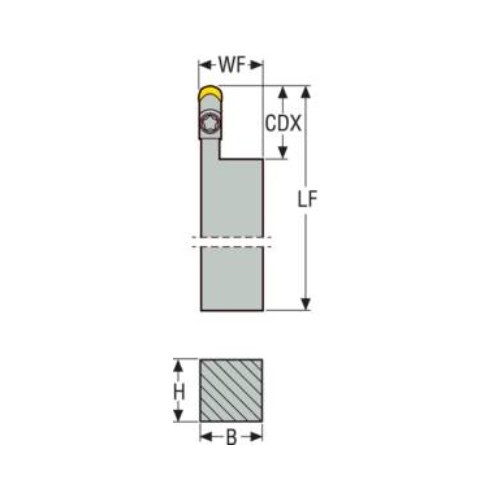

Functional Length (LF) 170mm

Shank Type Square shank

Insert Shape Code (SC) R

Head Length (LH) 29.5mm

Insert Size Inscribed Circle Diameter (mm) 9

Functional Width (WF) mm 26

Cutting Edge Length (mm) 9

Inclination Angle (LAMS) 0.0 deg

Tool Cutting Edge Angle Code (KAPRC) D

Tool Type D Type

Rake Angle Orthogonal (gamo) 0.0 deg

Insert Clamping System (ICS) Clamp Lock

Height Of Tool Holder Shank (H) mm 32

Tool Cutting Edge Angle (KAPR) 0.0 deg

Cutting Depth Maximum (cdx) mm 29.5

Connection Text Workpiece Side (ctws) RC09T3

Shank Width (b) mm 25

Version (internal/external/both) External

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 3225
