Specifications

AIMS SKU A0115163
Brand Seco
Model Number 00042543
Barcode Number 42543000000107
Net Weight (kg) 0.8

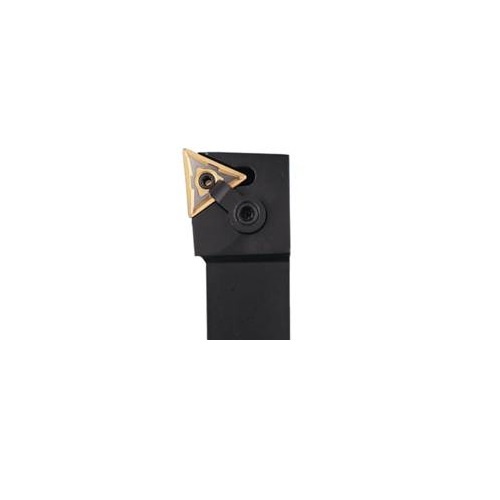

Designation MTLNL-16-4
Type Turning Toolholder
Insert Seat Size Code (SSC) 2204
Shank Type Square shank
Insert Shape Code (SC) T
Cutting Diameter Internal Minimum 3 (mm) 350
Insert Size Inscribed Circle Diameter (mm) 4
Ramping Angle Maximum (RPMX) 3.0 deg

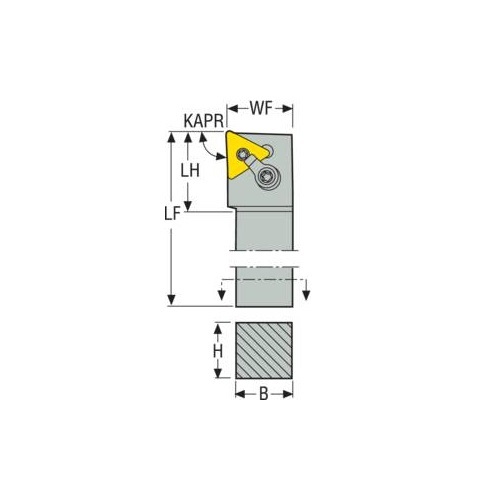

Functional Width (WF) mm 31.8
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -5.0 deg
Tool Cutting Edge Angle Code (KAPRC) L
Tool Type L Type
Functional Length (LF) 152.4mm
Insert Clamping System (ICS) Multiple Lock
Rake Angle Orthogonal (gamo) -5.0 deg
Shank Length (LS) mm 119.4
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 95.0 deg
Functional Height (HF) mm 25.4
Cutting Depth Maximum (cdx) mm 0.5
Connection Text Workpiece Side (ctws) TN2204
Shank Width (b) mm 25.4
Version (internal/external/both) External
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -5.0 deg
