Specifications
- AIMS SKU A0115271
- Brand Seco
- Model Number 00015715
- Barcode Number 15715000000104
- Net Weight (kg) 0.17
- Designation PTAPRS-8-2.5
- Type Turning Toolholder
- Insert Clamping System (ICS) Pin Lock
- Shank Type Square shank
- Insert Shape Code (SC) T
- Insert Size Inscribed Circle Diameter (mm) 2.5

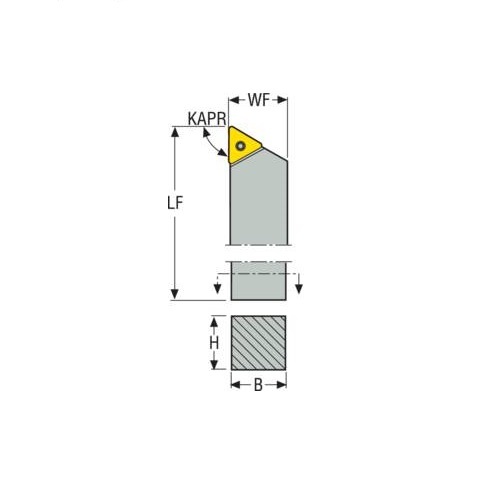

- Functional Width (WF) mm 13
- Cutting Edge Length (mm) 2.5
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) A
- Tool Type A Type
- Functional Length (LF) 114.3mm
- Rake Angle Orthogonal (gamo) 5.0 deg
- Height Of Tool Holder Shank (H) mm 12.7
- Tool Cutting Edge Angle (KAPR) 90.0 deg
- Connection Text Workpiece Side (ctws) TC1303
- Shank Width (b) mm 12.7
- Version (internal/external/both) External
- Direction Of Cutting (hand) Right
- Connection Text Machine Side (CTMS) 12.7
- Rake Angle Axial (gamp) 0.0 deg
SKU: A0115271

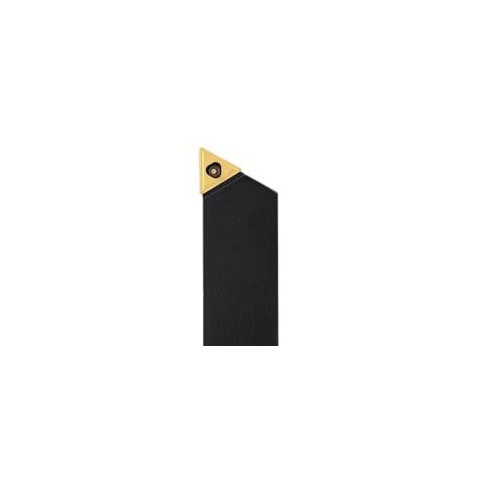

Seco Turning External Toolholder Pin Lock 114.3 x 13 x 2.5mm Right 90° T Insert Shape PTAPRS-8-2.5
Pin Lock - A Type - T Insert Shape
$134.64
SAVE $33.66 (20%)
