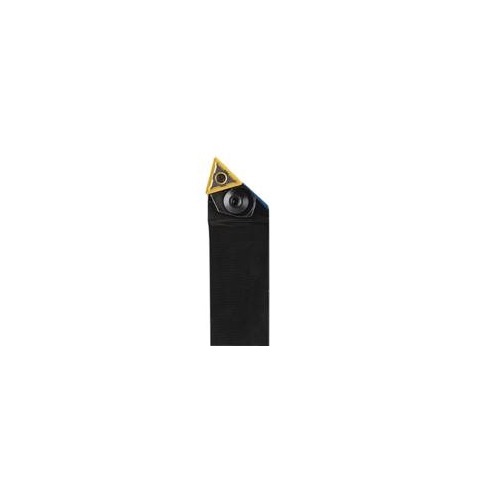

Seco Turning External Toolholder Pin Lock 150 x 22 x 16mm Left 75° T Insert Shape PTBNL2525M16

Description

Seco Turning External Toolholder Pin Lock 150 x 22 x 16mm Left 75° T Insert Shape PTBNL2525M16

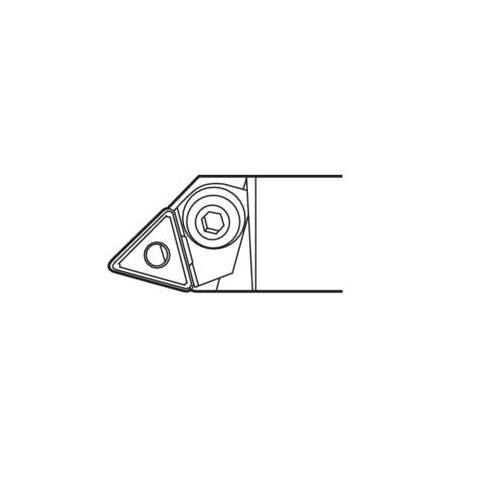

Turning External Toolholder (Pin Lock - B Type - T Insert Shape)

Pin Lock - Pin lock assembly, (NL/PL tool holders).
T insert shape.
B tool type, straight shank with 15° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115272

Brand Seco

Model Number 00092432

Barcode Number 92432000000109

Net Weight (kg) 0.674

Designation PTBNL2525M16

Type Turning Toolholder

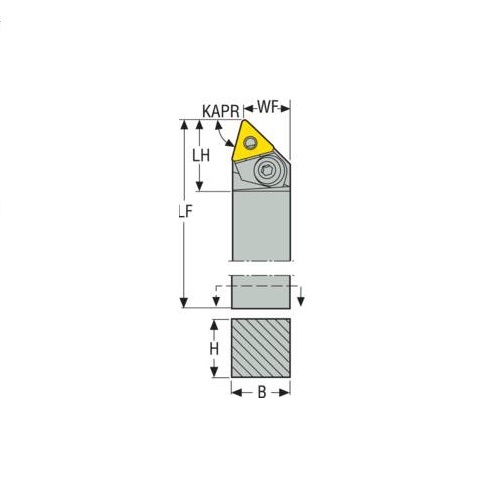

Functional Length (LF) 150mm

Shank Type Square shank

Insert Shape Code (SC) T

Head Length (LH) 26mm

Functional Width (WF) mm 22

Cutting Edge Length (mm) 16

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) B

Tool Type B Type

Rake Angle Orthogonal (gamo) -5.0 deg

Insert Clamping System (ICS) Pin Lock

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 75.0 deg

Connection Text Workpiece Side (ctws) TN1604

Shank Width (b) mm 25

Version (internal/external/both) External

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 2525
