Specifications
- AIMS SKU A0115558
- Brand Seco
- Model Number 02416718
- Barcode Number 16718024000104
- Net Weight (kg) 0.348
- Designation SVJCL2020K11
- Type Turning Toolholder

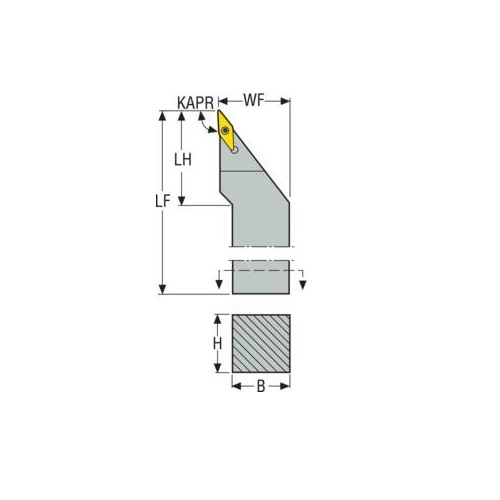

- Functional Length (LF) 125mm
- Shank Type Square shank
- Insert Shape Code (SC) V
- Head Length (LH) 25mm
- Functional Width (WF) mm 25
- Cutting Edge Length (mm) 11
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) J
- Tool Type J Type
- Rake Angle Orthogonal (gamo) 0.0 deg
- Insert Clamping System (ICS) Screw Lock
- Height Of Tool Holder Shank (H) mm 20
- Tool Cutting Edge Angle (KAPR) 93.0 deg
- Connection Text Workpiece Side (ctws) VC1103
- Shank Width (b) mm 20
- Version (internal/external/both) External
- Direction Of Cutting (hand) Left
- Connection Text Machine Side (CTMS) 2020
SKU: A0115558

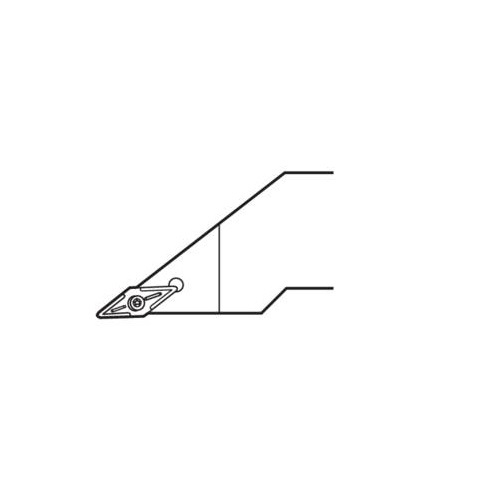

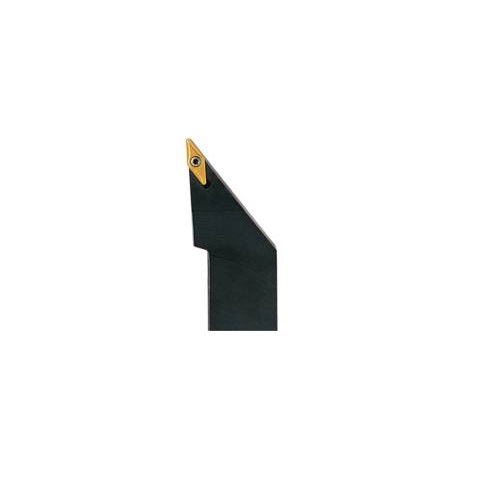

Seco Turning External Toolholder Screw Lock 125 x 25 x 11mm Left 93° V Insert Shape SVJCL2020K11
Screw Lock - J Type - V Insert Shape - 7° ISCA
$198.88
SAVE $49.72 (20%)
