Specifications

AIMS SKU A0114944
Brand Seco
Model Number 02565514
Barcode Number 65514025000107
Net Weight (kg) 0.78

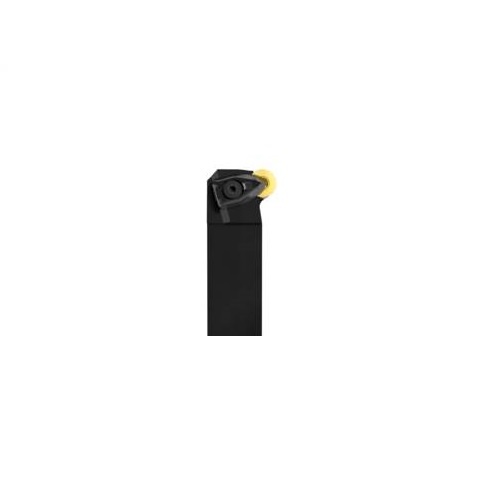

Designation DRGNR-16-4D
Type Turning Toolholder
Insert Clamping System (ICS) Top Clamp
Shank Type Square shank
Insert Shape Code (SC) R
Insert Size Inscribed Circle Diameter (mm) 4
Ramping Angle Maximum (RPMX) 0.0 deg
Functional Width (WF) mm 31.8
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) G
Tool Type G Type
Functional Length (LF) 152.4mm
Rake Angle Orthogonal (gamo) -6.0 deg
Shank Length (LS) mm 122.4
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) RN1204
Shank Width (b) mm 25.4
Version (internal/external/both) External
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -6.0 deg
