Specifications

AIMS SKU A0115055
Brand Seco
Model Number 02880417
Barcode Number 80417028000107
Net Weight (kg) 0.73
Designation DVPNR-16-3D

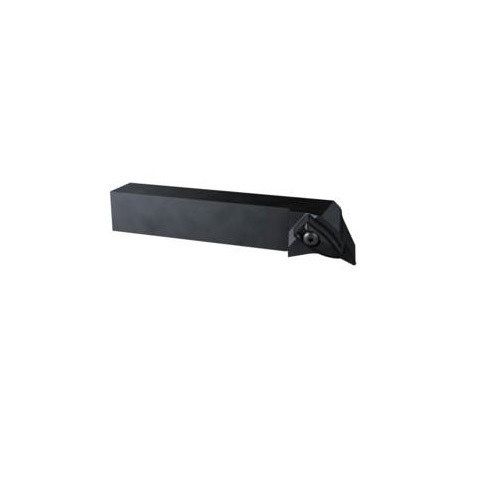

Type Turning Toolholder

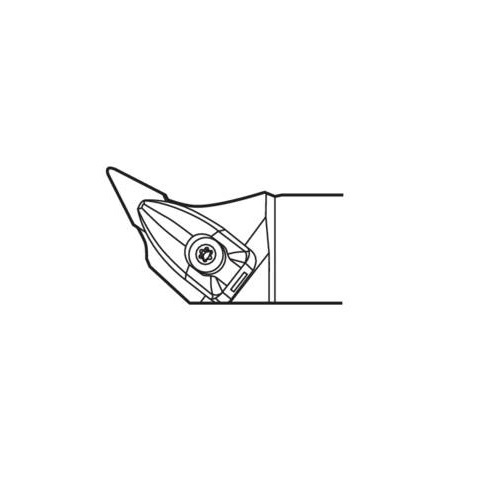

Insert Clamping System (ICS) Top Clamp
Shank Type Square shank
Insert Shape Code (SC) V
Insert Size Inscribed Circle Diameter (mm) 3

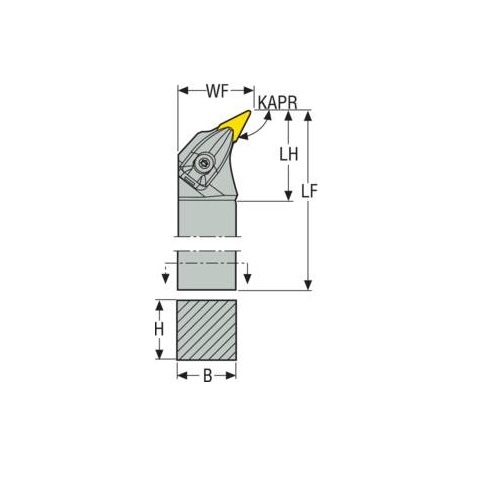

Functional Width (WF) mm 31.8
Cutting Edge Length (mm) 3
Inclination Angle (LAMS) -12.5 deg
Tool Cutting Edge Angle Code (KAPRC) P
Tool Type P Type
Functional Length (LF) 152.4mm
Rake Angle Orthogonal (gamo) -4.0 deg
Height Of Tool Holder Shank (H) mm 25.3
Tool Cutting Edge Angle (KAPR) 117.5 deg
Functional Height (HF) mm 25.4
Connection Text Workpiece Side (ctws) VN1604
Shank Width (b) mm 25.3
Version (internal/external/both) External
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 25.4
