Specifications

AIMS SKU A0115063
Brand Seco
Model Number 02605007
Barcode Number 5007026000101
Net Weight (kg) 0.8
Designation DWLNR-16-4D-C

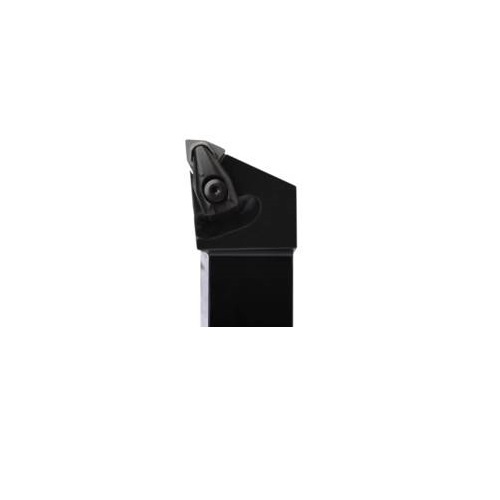

Type Turning Toolholder

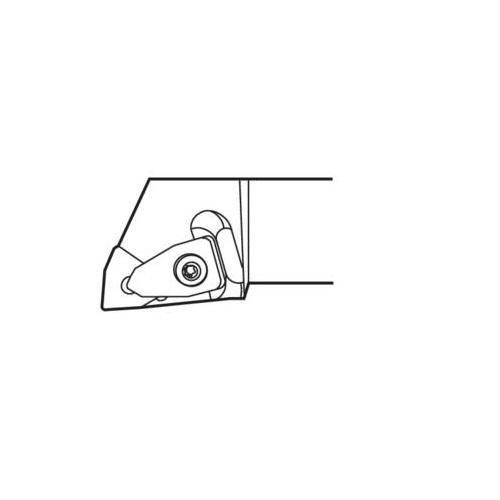

Insert Clamping System (ICS) Top Clamp
Shank Type Square shank
Insert Shape Code (SC) W
Insert Size Inscribed Circle Diameter (mm) 4

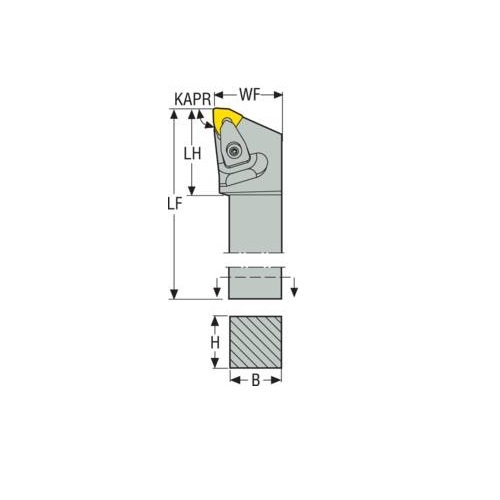

Functional Width (WF) mm 31.8
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) L
Tool Type L Type
Functional Length (LF) 152.4mm
Rake Angle Orthogonal (gamo) -6.0 deg
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) WN0804
Shank Width (b) mm 25.4
Version (internal/external/both) External
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -6.0 deg
