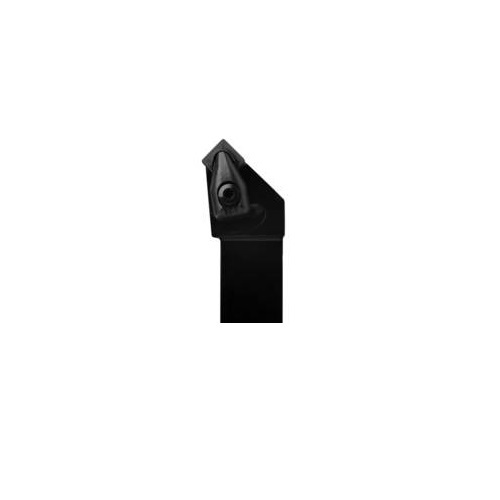

Seco Turning External Toolholder Top Clamp 170 x 39 x 12mm Right 45° S Insert Shape DSSNR3225P12-C

Description

Seco Turning External Toolholder Top Clamp 170 x 39 x 12mm Right 45° S Insert Shape DSSNR3225P12-C

Turning External Toolholder (Top Clamp - S Type - S Insert Shape - C Surface)

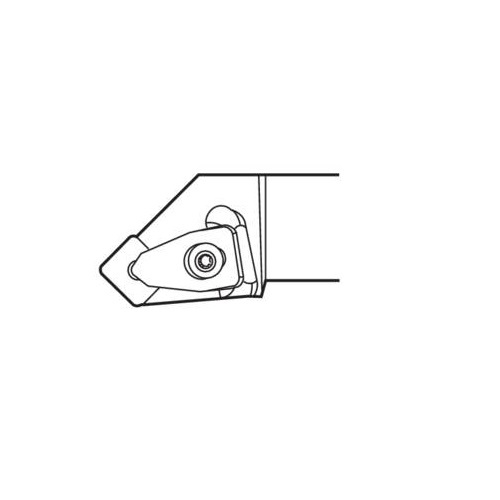

Top clamp using the center hole.
S insert shape.
S tool type, offset shank with 45° side cutting edge angle.
C surface, qualified back and end. 5” long.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114999

Brand Seco

Model Number 02598529

Barcode Number 98529025000109

Net Weight (kg) 1.088

Designation DSSNR3225P12-C

Type Turning Toolholder

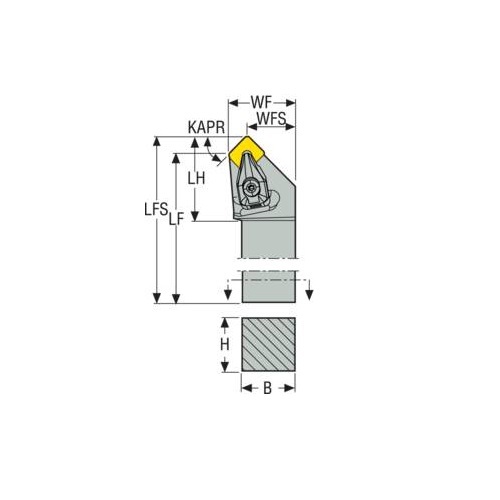

Functional Length (LF) 170mm

Shank Type Square shank

Insert Shape Code (SC) S

Head Length (LH) 39mm

Functional Width (WF) mm 32

Cutting Edge Length (mm) 12

Inclination Angle (LAMS) 0.0 deg

Tool Cutting Edge Angle Code (KAPRC) S

Tool Type S Type

Rake Angle Orthogonal (gamo) -8.0 deg

Insert Clamping System (ICS) Top Clamp

Height Of Tool Holder Shank (H) mm 32

Tool Cutting Edge Angle (KAPR) 45.0 deg

Connection Text Workpiece Side (ctws) SN1204

Shank Width (b) mm 25

Version (internal/external/both) External

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 3225
