Description

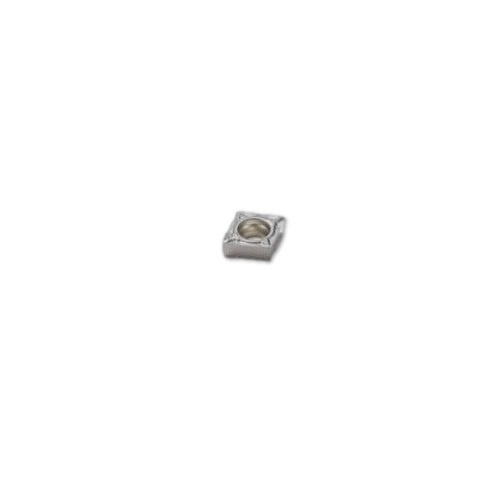

Seco Turning Insert C Shape Code 2.38 x 0.2 x 6.35mm X Insert Type - W-F1 7° Grade TP2501 ± 0.05/± 0.025mm CCGX060202W-F1 Pack of 10

Turning Insert C Shape Code X Insert Type - W-F1 7° Grade TP2501

  • C shape code.
  • X Insert Type.
  • 7° insert side clearance angles.

TP2501 Insert Grade

  • CVD Coated
  • Duratomic® grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

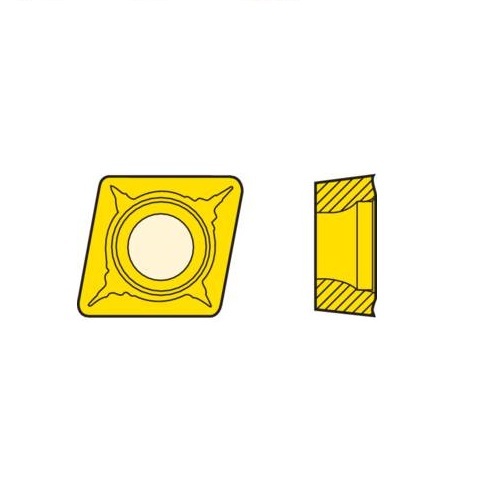

W-F1 Chipbreaker Programme

  • A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
  • Suitable for high feed rates at small depths of cut.
  • Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0115699
  • Brand Seco
  • Model Number 02960381
  • Barcode Number 60381029001004
  • Designation CCGX060202W-F1,TP2501
  • Type Turning Insert
  • Insert Grade Grade TP2501
  • Chipbreaker Programme W-F1
  • Tolerance ñ 0.05/ñ 0.025mm

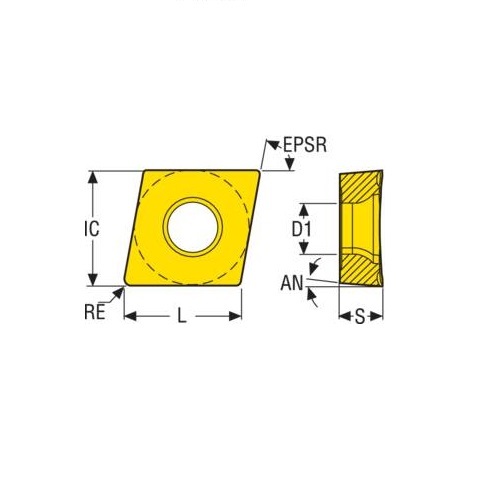

  • Theoretical Cutting Edge Length (L) mm 6.5
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Fixing Hole Diameter (d1) Mm 2.9
  • Clearance Angle Major (an) Deg 7.0 deg
  • Inscribed Circle Diameter (IC) mm 6.35
  • Fixing Hole Diameter D1 Mm 2.9
  • Insert Style CCGX
  • Insert Shape Code (SC) C
  • Insert Seat Size Code (SSC) 6
  • Corner Radius (RE) mm 0.2
  • Insert Thickness (S) mm 2.38
  • Cutting Edge Effective Length (LE) mm 6.3
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 2
  • Grade Type Carbide CVD
  • Grade Grade TP2501
SKU: A0115699

Seco Turning Insert C Shape Code 2.38 x 0.2 x 6.35mm X Insert Type - W-F1 7° Grade TP2501 ± 0.05/± 0.025mm CCGX060202W-F1 Pack of 10

Turning Insert CCGX Insert Style - F1 7° Grade TP2501

$302.20
