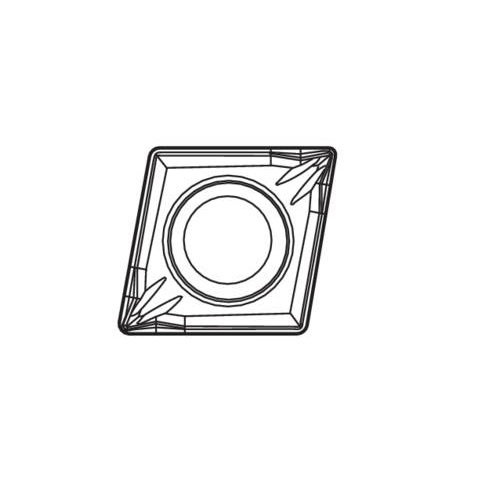

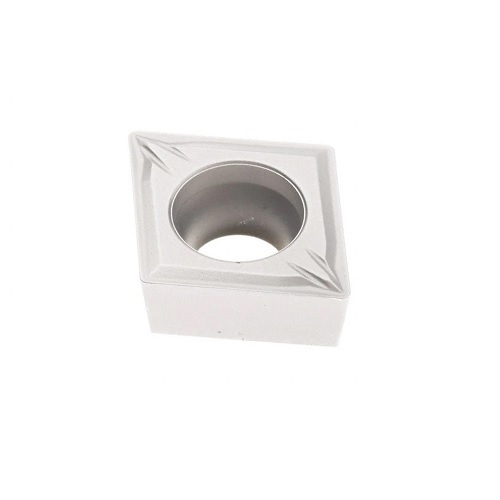

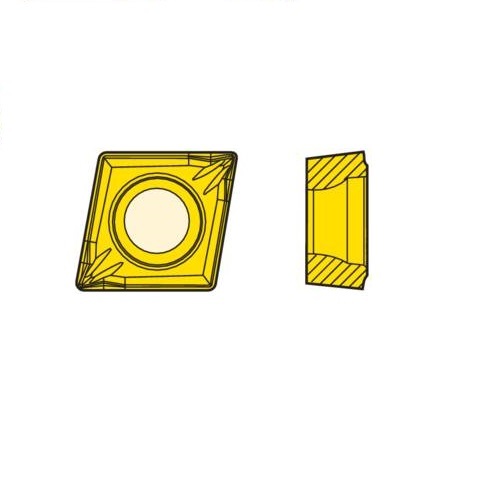

Seco Turning Insert C Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - MF2 7° Grade TP3501 ± 0.05/± 0.05mm CCMT060202-MF2 Pack of 10

Turning Insert C Shape Code T Insert Type - MF2 7° Grade TP3501 - ± 0.05/± 0.05mm Tolerance - 0.2mm Corner Radius

  • C shape code
  • T Insert Type.
  • 7° insert side clearance angles.
  • ± 0.05/± 0.05mm tolerance.
  • 0.2mm corner radius (RE).

TP3501 Insert Grade

  • CVD Coated.
  • Duratomic® grade.
  • Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

  • A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
  • Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
  • Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116574
  • Brand Seco
  • Model Number 03095429
  • Barcode Number 95429030001005
  • Type Turning Insert
  • Designation CCMT060202-MF2,CCMT060202-MF2,TP3501
  • Grade Grade TP3501
  • Insert Thickness (S) mm 2.38
  • Corner Radius (RE) mm 0.2
  • Insert Shape Code (SC) C
  • Insert Grade Grade TP3501
  • Insert Style CCMT
  • Fixing Hole Diameter D1 Mm 2.9
  • Inscribed Circle Diameter (IC) mm 6.35
  • Clearance Angle Major (an) Deg 7.0 deg
  • Fixing Hole Diameter (d1) Mm 2.9
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 6.5
  • Tolerance ñ 0.05/ñ 0.05mm
  • Chipbreaker Programme MF2
SKU: A0116574

Seco Turning Insert C Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - MF2 7° Grade TP3501 ± 0.05/± 0.05mm CCMT060202-MF2 Pack of 10

Turning Insert CCMT Insert Style - MF2 7° Grade TP3501

$178.28
