Specifications
- AIMS SKU A0116549
- Brand Seco
- Model Number 02960829
- Barcode Number 60829029001001
- Designation CCMT060204W-F1,CCMT060204W-F1,TP2501
- Type Turning Insert
- Insert Grade Grade TP2501
- Chipbreaker Programme W-F1
- Tolerance ñ 0.05/ñ 0.05mm

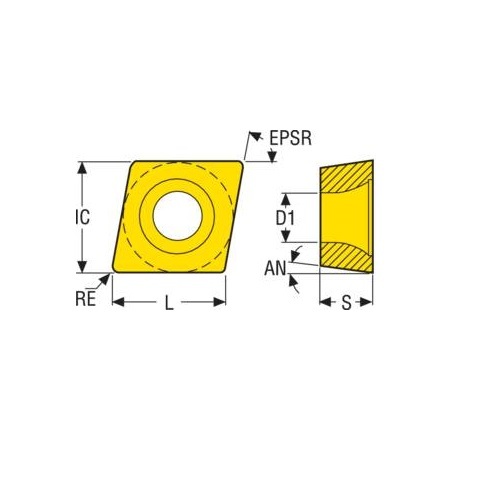

- Theoretical Cutting Edge Length (L) mm 6.5
- Insert Included Angle (epsr) Deg 80.0 deg
- Fixing Hole Diameter (d1) Mm 2.9
- Clearance Angle Major (an) Deg 7.0 deg
- Inscribed Circle Diameter (IC) mm 6.35
- Fixing Hole Diameter D1 Mm 2.9
- Insert Style CCMT
- Insert Shape Code (SC) C
- Insert Seat Size Code (SSC) 6
- Corner Radius (RE) mm 0.4
- Insert Thickness (S) mm 2.38
- Cutting Edge Effective Length (LE) mm 6.1
- Insert Hand (IH) Neutral
- Cutting Edge Count (CEDC) 2
- Grade Type Carbide CVD
- Grade Grade TP2501
SKU: A0116549

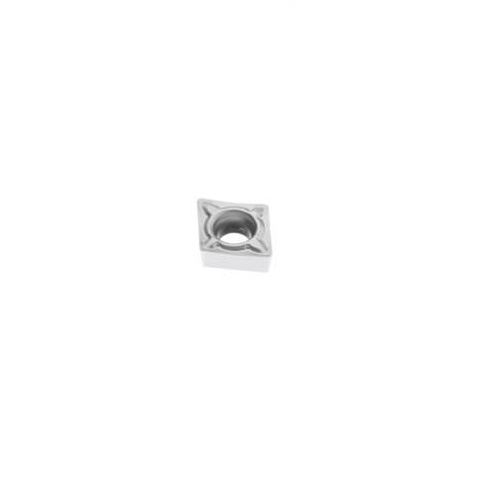

Seco Turning Insert C Shape Code 2.38 x 0.4 x 6.35mm T Insert Type - W-F1 7° Grade TP2501 ± 0.05/± 0.05mm CCMT060204W-F1 Pack of 10
Turning Insert CCMT Insert Style - W-F1 7° Grade TP2501
$178.28
