Description

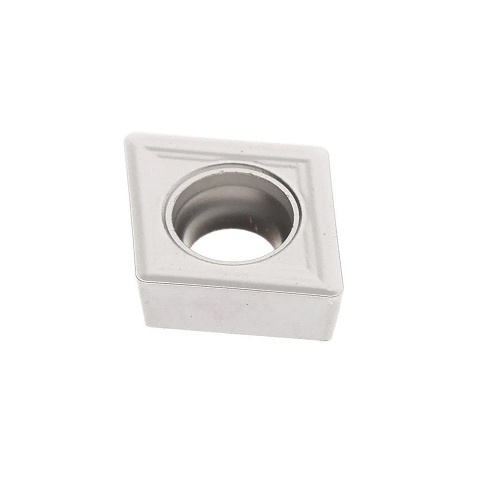

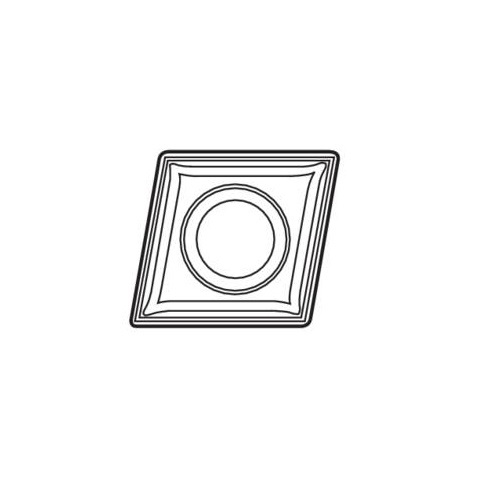

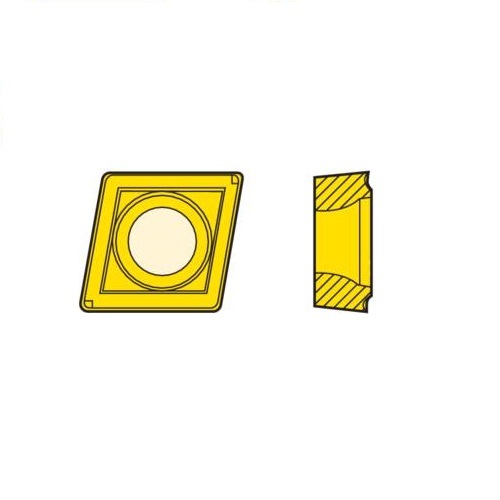

Seco Turning Insert C Shape Code 2.38 x 0.4 x 6.35mm T Insert Type - M3 7° Grade TK0501 ± 0.05/± 0.05mm CCMT060204-M3 Pack of 10

Turning Insert C Shape Code T Insert Type - M3 7° Grade TK0501 - ± 0.05/± 0.05mm Tolerance

  • C shape code
  • T Insert Type.
  • 7° insert side clearance angles.
  • ± 0.05/± 0.05mm tolerance.

TK0501 Insert Grade

  • CVD Coated.
  • Duratomic® grade.
  • An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

  • A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
  • Suitable for medium cuts in steel and stainless steel application including boring.
  • Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116590
  • Brand Seco
  • Model Number 03062943
  • Barcode Number 62943030001008
  • Type Turning Insert
  • Designation CCMT060204-M3,CCMT060204-M3,TK0501
  • Grade Grade TK0501
  • Insert Thickness (S) mm 2.38
  • Corner Radius (RE) mm 0.4
  • Insert Shape Code (SC) C
  • Insert Grade Grade TK0501
  • Insert Style CCMT
  • Fixing Hole Diameter D1 Mm 2.9
  • Inscribed Circle Diameter (IC) mm 6.35
  • Clearance Angle Major (an) Deg 7.0 deg
  • Fixing Hole Diameter (d1) Mm 2.9
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 6.5
  • Tolerance ñ 0.05/ñ 0.05mm
  • Chipbreaker Programme M3
SKU: A0116590

Seco Turning Insert C Shape Code 2.38 x 0.4 x 6.35mm T Insert Type - M3 7° Grade TK0501 ± 0.05/± 0.05mm CCMT060204-M3 Pack of 10

Turning Insert CCMT Insert Style - M3 7° Grade TK0501 6.

$155.40
