Specifications
- AIMS SKU A0116573
- Brand Seco
- Model Number 02956305
- Barcode Number 56305029001007
- Type Turning Insert
- Designation CCMT060208-MF2,CCMT060208-MF2,TP2501
- Grade Grade TP2501

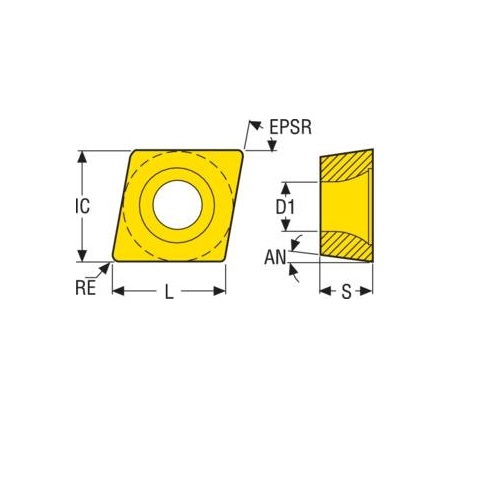

- Insert Thickness (S) mm 2.38
- Corner Radius (RE) mm 0.8
- Insert Shape Code (SC) C
- Insert Grade Grade TP2501
- Insert Style CCMT
- Fixing Hole Diameter D1 Mm 2.9
- Inscribed Circle Diameter (IC) mm 6.35
- Clearance Angle Major (an) Deg 7.0 deg
- Fixing Hole Diameter (d1) Mm 2.9
- Insert Included Angle (epsr) Deg 80.0 deg
- Theoretical Cutting Edge Length (L) mm 6.5
- Tolerance ñ 0.05/ñ 0.05mm
- Chipbreaker Programme MF2
SKU: A0116573

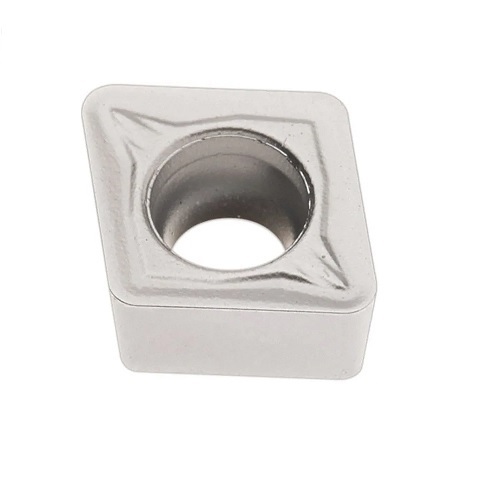

Seco Turning Insert C Shape Code 2.38 x 0.8 x 6.35mm T Insert Type - MF2 7° Grade TP2501 ± 0.05/± 0.05mm CCMT060208-MF2 Pack of 10
Turning Insert CCMT Insert Style - MF2 7° Grade TP2501
$155.40
