Description

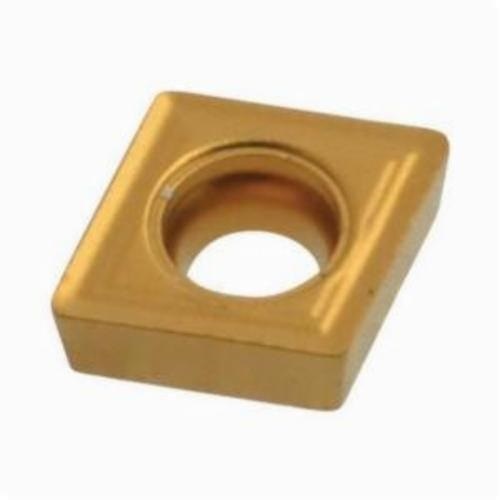

Seco Turning Insert C Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - F2 7° Grade TS2000 ± 0.13/± 0.05mm CCMT09T304-F2 Pack of 10

Turning Insert C Shape Code T Insert Type - F2 7° Grade TS2000

  • C shape code
  • T Insert Type.
  • 7° insert side clearance angles.

TS2000 Insert Grade

  • PVD Coated.
  • Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in stainless steels.
  • (Ti, Al)N + TiN.

F2 Chipbreaker Programme

  • A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
  • Suitable for medium cuts in steel and stainless steels application including boring.
  • Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116581
  • Brand Seco
  • Model Number 02615875
  • Barcode Number 15875026001001
  • Type Turning Insert
  • Designation CCMT09T304-F2,CCMT09T304-F2,TS2000
  • Grade Grade TS2000

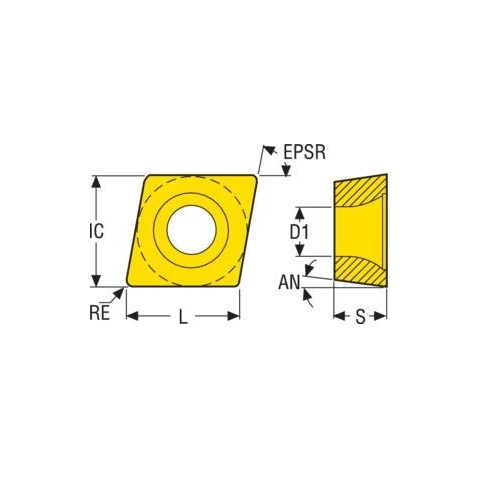

  • Insert Thickness (S) mm 3.97
  • Corner Radius (RE) mm 0.4
  • Insert Shape Code (SC) C
  • Insert Grade Grade TS2000
  • Insert Style CCMT
  • Fixing Hole Diameter D1 Mm 4.5
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 7.0 deg
  • Fixing Hole Diameter (d1) Mm 4.5
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 9.7
  • Tolerance ñ 0.13/ñ 0.05mm
  • Chipbreaker Programme F2
SKU: A0116581

Seco Turning Insert C Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - F2 7° Grade TS2000 ± 0.13/± 0.05mm CCMT09T304-F2 Pack of 10

Turning Insert CCMT Insert Style - F2 7° Grade TS2000

$185.90
