Description

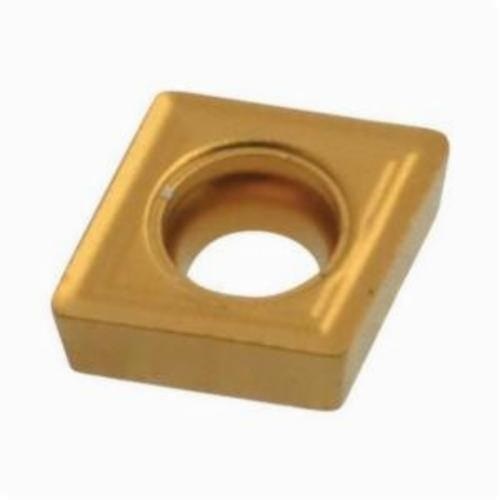

Seco Turning Insert C Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - F2 7° Grade CP200 ± 0.13/± 0.05mm CCMT09T304-F2 Pack of 10

Turning Insert C Shape Code T Insert Type - F2 7° Grade CP200

CP200 Insert Grade

PVD Coated.
Hard micrograin grade principally intended for finishing in superalloys and titanium.
Also works well in stainless steels.
(Ti, Al) N + TiN.

F2 Chipbreaker Programme

A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
Suitable for medium cuts in steel and stainless steels application including boring.
Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
