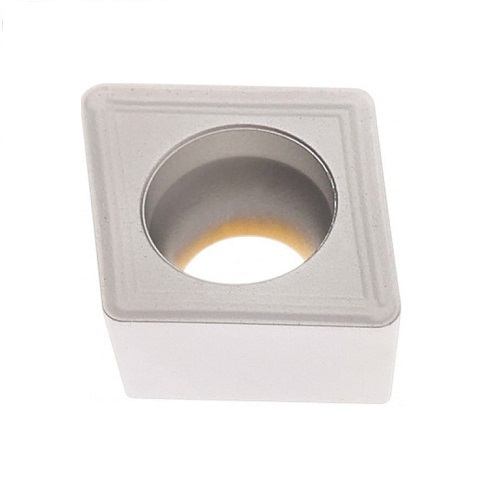

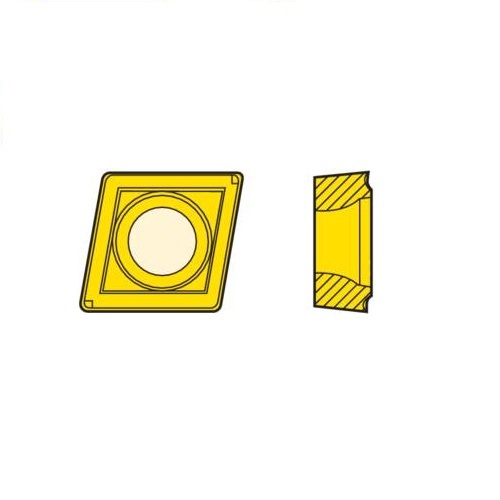

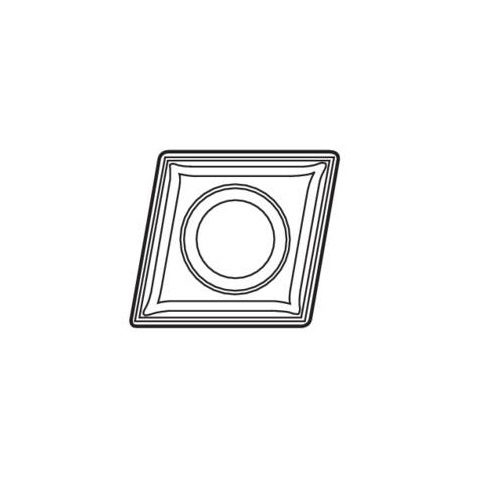

Seco Turning Insert C Shape Code 3.97 x 0.79 x 9.53mm T Insert Type - M3 7° Grade TP1501 ± 0.13/± 0.05mm CCMT09T308W-M3 Pack of 10

Turning Insert C Shape Code T Insert Type - M3 7° Grade TP1501

  • C shape code.
  • T Insert Type.
  • 7° insert side clearance angles.

TP1501 Insert Grade

  • CVD Coated.
  • Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

M3 Chipbreaker Programme

  • A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
  • Suitable for medium cuts in steel and stainless steels application including boring.
  • Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116585
  • Brand Seco
  • Model Number 02960830
  • Barcode Number 60830029001007
  • Designation CCMT09T308W-M3
  • Type Turning Insert
  • Insert Grade Grade TP1501
  • Chipbreaker Programme M3
  • Tolerance ñ 0.13/ñ 0.05mm
  • Theoretical Cutting Edge Length (L) mm 9.67
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Fixing Hole Diameter (d1) Mm 4.5
  • Clearance Angle Major (an) Deg 7.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Fixing Hole Diameter D1 Mm 4.5
  • Insert Style CCMT
  • Insert Shape Code (SC) C
  • Insert Seat Size Code (SSC) 9
  • Corner Radius (RE) mm 0.79
  • Insert Thickness (S) mm 3.97
  • Cutting Edge Effective Length (LE) mm 8.9
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 2
  • Grade Type Carbide CVD
  • Grade Grade TP1501
SKU: A0116585

Seco Turning Insert C Shape Code 3.97 x 0.79 x 9.53mm T Insert Type - M3 7° Grade TP1501 ± 0.13/± 0.05mm CCMT09T308W-M3 Pack of 10

Turning Insert CCMT Insert Style - M3 7° Grade TP1501

$209.74
