Description

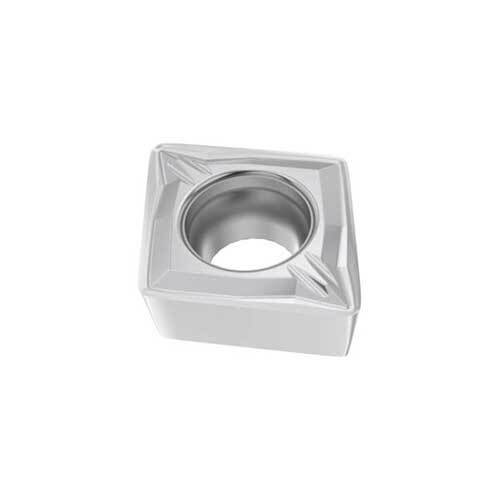

Turning Insert CCMT Insert Style - W-MF2 7° Grade TM2501

  • C shape code
  • T Insert Type.

TM2501 Insert Grade

  • Duratomic® grade.
  • A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
  • First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

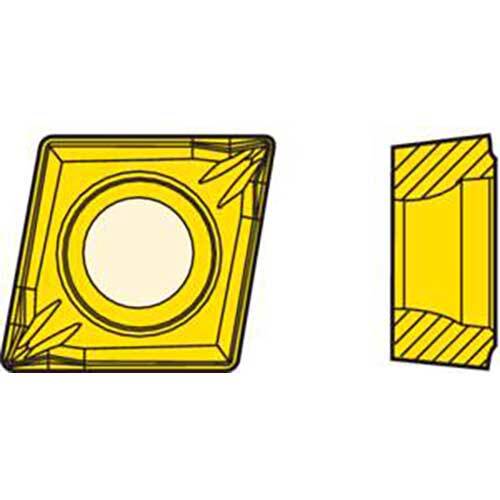

W-MF2 Chipbreaker Programme

  • First choice for finishing with both positive and negative inserts.
  • Chipbreaker is suitable for finishing machining of steel, stainless steel, and cast iron at high feed rates giving a good surface finish.
  • Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158544
  • Brand Seco
  • Model Number 03277070
  • Net Weight (kg) 0.003
  • Type Turning Insert
  • Wiper Edge Property (WEP) 1
  • Insert Seat Size Code (SSC) mm 9
  • Chip Breaker Manufacturers Designation (CBMD) MF2

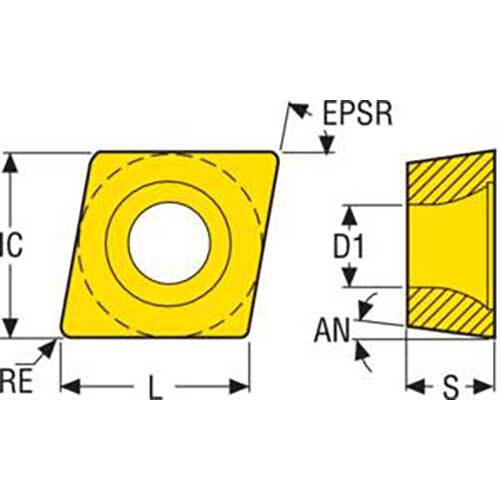

  • Theoretical Cutting Edge Length (L) mm 9.67
  • Fixing Hole Diameter (d1) Mm 4.5
  • Clearance Angle Major (an) Deg 7.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Corner Radius (RE) mm 0.8
  • Insert Thickness (S) mm 3.97
  • Cutting Edge Effective Length (LE) mm 8.87
  • Insert Hand (IH) Neutral
  • Insert Included Angle (EPSR) 80.0 deg
  • Cutting Edge Count (CEDC) 2
  • Grade Type Carbide CVD:Designation:CCMT09T308W-MF2 TM2501
  • Grade TM2501
SKU: A0158544

Seco Turning Insert C Shape Code 3.97 x 0.8 x 9.53mm T Insert Type - W-MF2 7° Grade TM2501 ± 0.13/± 0.05mm CCMT09T308W-MF2 Pack of 10

Turning Insert CCMT Insert Style - W-MF2 7° Grade TM2501

$209.74
