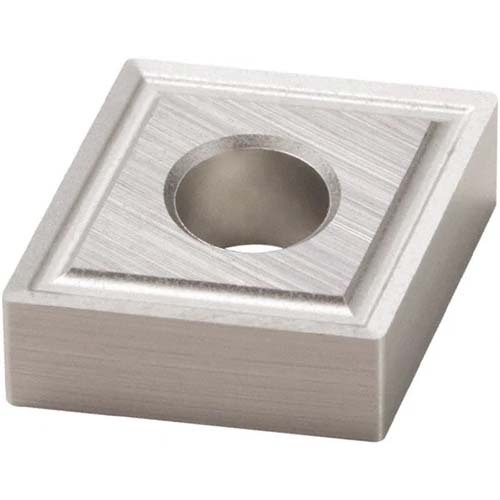

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - M1 Grade 883 ± 0.13/± 0.025mm Tolerance CNGG120404-M1,883 10pcs

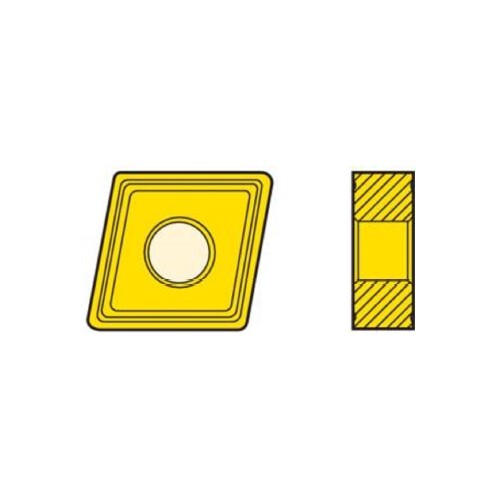

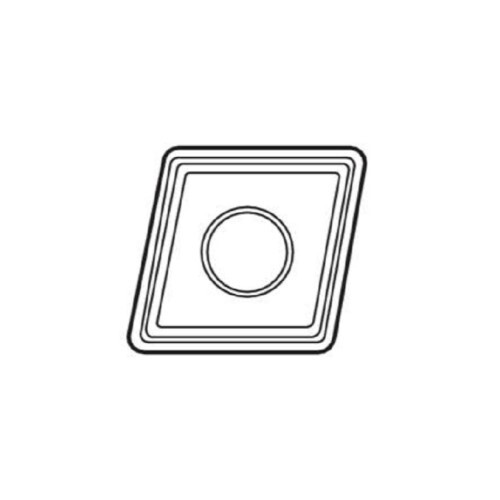

Turning Insert CNGG Insert Style - M1 Grade 883

  • C shape code.
  • G insert type, with hole and chip breaker on both faces.
  • 883 insert grade.

883 Insert Grade

  • Relatively hard and still tough uncoated micrograin grade for machining of titanium in roughing applications and also suitable for superalloys.

M1 Chipbreaker Programme

  • Chipbreaker intended for superalloys and titanium alloys.
  • It has a positive cutting rake angle which is slightly honed to increase the edge strength. Also available with a perfectly sharp edge (type ..GG insert).
  • The M1 is intended for light roughing and for semi-finishing.
  • Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1,5–5,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116658
  • Brand Seco
  • Model Number 00048719
  • Barcode Number 48719000001008
  • Type Turning Insert
  • Designation CNGG120404-M1 883
  • Grade 883

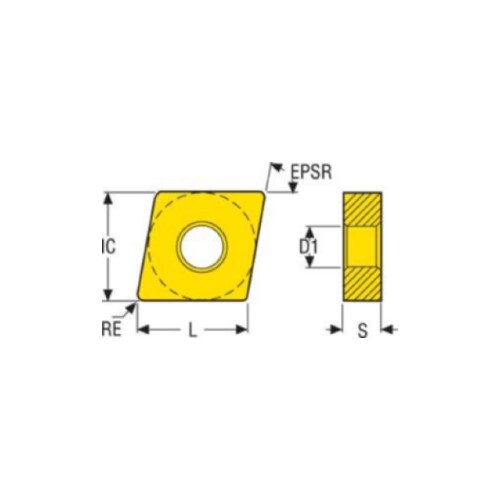

  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.4
  • Insert Shape Code (SC) C
  • Insert Grade Grade 883
  • Insert Style CNGG
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Chipbreaker Programme M1
SKU: A0116658

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - M1 Grade 883 ± 0.13/± 0.025mm Tolerance CNGG120404-M1,883 - Pack of 10

Turning Insert CNGG Insert Style - M1 Grade 883

$253.58
