Description

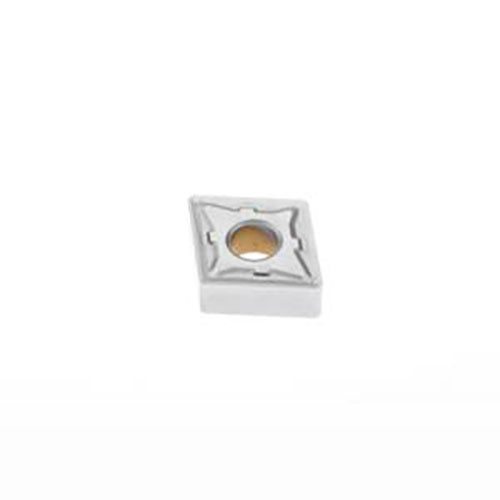

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - M5 Grade TK1501 ± 0.13/± 0.05mm Tolerance CNMG120404-M5,TK1501 10pcs

Turning Insert CNMG Insert Style - M5 Grade TK1501 0.4mm Corner Radius (RE)

  • C shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TK1501 insert grade.
  • 0.4mm corner radius (RE).

TK1501 Insert Grade

  • Duratomic® grade.
  • A highly wear-resistant grade for cast irons in general as well as in steels.
  • The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

  • The choice for roughing by means of double-sided inserts.
  • Intended for demanding operations at high feed rates in steel.
  • Stainless steel and cast iron.
  • Combines high edge strength with comparatively low cutting forces.
  • Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118399
  • Brand Seco
  • Model Number 03064523
  • Barcode Number 64523030001000
  • Type Turning Insert
  • Designation CNMG120404-M5 TK1501
  • Grade TK1501
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.4
  • Insert Shape Code (SC) C
  • Insert Grade Grade TK1501
  • Insert Style CNMG
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Chipbreaker Programme M5
SKU: A0118399

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - M5 Grade TK1501 ± 0.13/± 0.05mm Tolerance CNMG120404-M5,TK1501 - Pack of 10

Turning Insert CNMG Insert Style - M5 Grade TK1501 0.4mm

$227.84
