Description

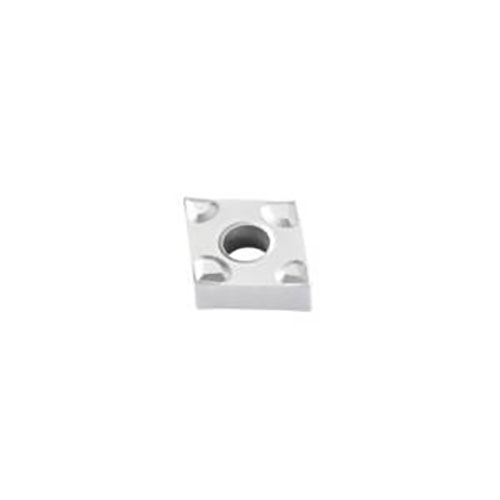

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - FF1 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG120404-FF1,TP2501 10pcs

Turning Insert CNMG Insert Style - FF1 Grade TP2501

  • C shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TP2501 insert grade.

TP2501 Insert Grade

  • Duratomic® grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

FF1 Chipbreaker Programme

  • Chipbreaker for negative inserts. Used to achieve a very fine finish when turning slender steel and stainless steel components.
  • Indicative machining range: f = 0,08-0,30 mm/rev, ap = 0,2-3,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118475
  • Brand Seco
  • Model Number 02960686
  • Barcode Number 60686029001000
  • Type Turning Insert
  • Designation CNMG120404-FF1 TP2501
  • Grade TP2501
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.4
  • Insert Shape Code (SC) C
  • Insert Grade Grade TP2501
  • Insert Style CNMG
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Chipbreaker Programme FF1
SKU: A0118475

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - FF1 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG120404-FF1,TP2501 - Pack of 10

Turning Insert CNMG Insert Style - FF1 Grade TP2501

$227.84
