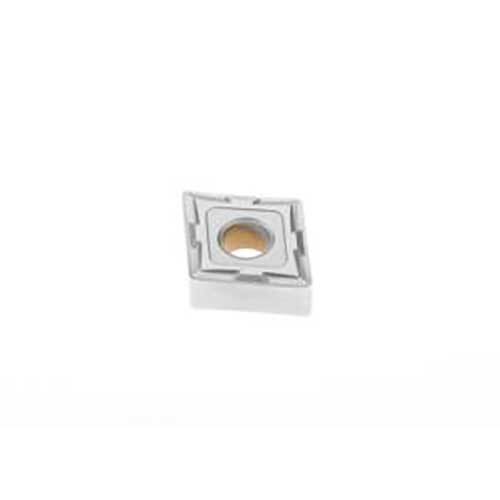

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - MF2 Grade TP2501 CNMG120404-MF2,TP2501 - Pack of 10

Description

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - MF2 Grade TP2501 CNMG120404-MF2,TP2501 - Pack of 10

Turning Insert CNMG Insert Style - MF2 Grade TP2501

C Shape Code.
TP2501 insert grade.

TP2501 Insert Grade

Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

First choice for finishing with negative inserts.
Suitable for chip control at depths of cutting down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.
Good capacity for medium rough machining.
Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.

Specifications

AIMS SKU A0122826

Brand Seco

Model Number 02959819

Barcode Number 59819029001006

Type Turning Insert

Designation TP2501 CNMG120404-MF2,TP2501

Grade TP2501

Weight (kg) 0.009

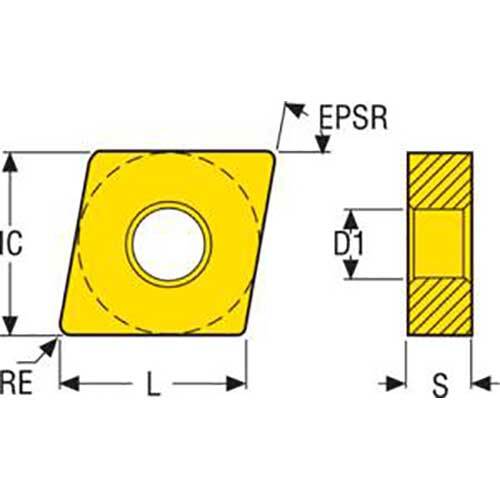

Inscribed Circle Diameter (IC) 12.7

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.4

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 5.2

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 12.9
