Description

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MR3 Grade 890 ± 0.13/± 0.05mm Tolerance CNMG120408-MR3,890 10pcs

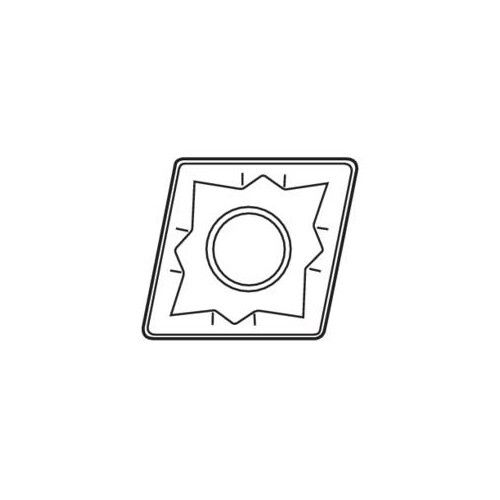

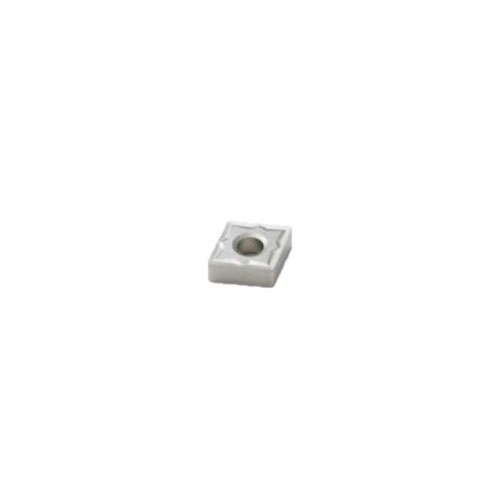

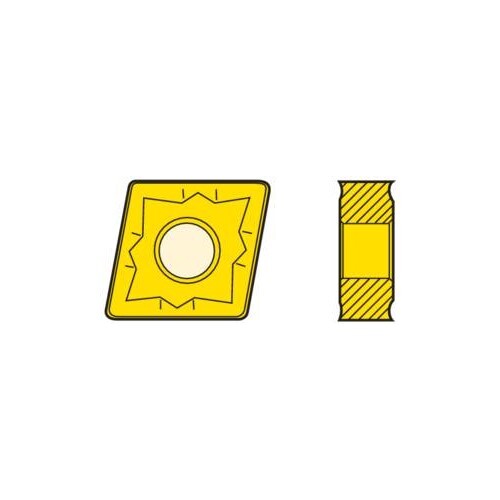

Turning Insert CNMG Insert Style - MR3 Grade 890

  • C shape code.
  • G insert type, with hole and chip breaker on both faces.
  • 890 insert grade.

890 Insert Grade

  • High hardness uncoated micrograin grade maintaining good toughness intended for superalloys and titanium can also be applied in other materials.

MR3 Chipbreaker Programme

  • Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength.
  • Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel.
  • Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116743
  • Brand Seco
  • Model Number 74050193
  • Barcode Number 50193740001002
  • Type Turning Insert
  • Designation CNMG120408-MR3 890
  • Grade 890

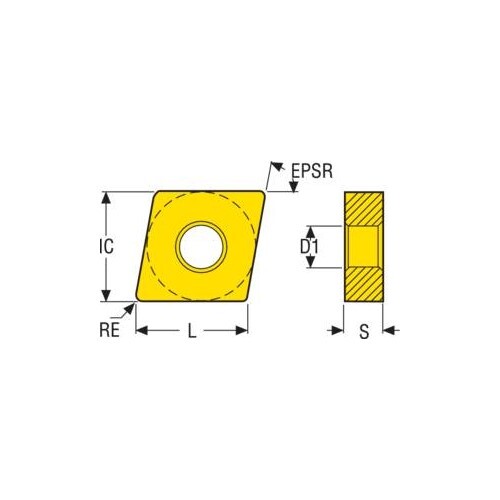

  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Shape Code (SC) C
  • Insert Grade Grade 890
  • Insert Style CNMG
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Chipbreaker Programme MR3
SKU: A0116743

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MR3 Grade 890 ± 0.13/± 0.05mm Tolerance CNMG120408-MR3,890 - Pack of 10

Turning Insert CNMG Insert Style - MR3 Grade 890

$168.74
