Specifications
- AIMS SKU A0116911
- Brand Seco
- Model Number 03062518
- Barcode Number 62518030001008
- Type Turning Insert
- Designation CNMG120408-MF2 TK0501
- Grade TK0501
- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 0.8
- Insert Shape Code (SC) C
- Insert Grade Grade TK0501
- Insert Style CNMG
- Inscribed Circle Diameter (IC) mm 12.7
- Clearance Angle Major (an) Deg 0.0 deg
- Fixing Hole Diameter (d1) Mm 5.2
- Insert Included Angle (epsr) Deg 80.0 deg
- Theoretical Cutting Edge Length (L) mm 12.9
- Chipbreaker Programme MF2
SKU: A0116911

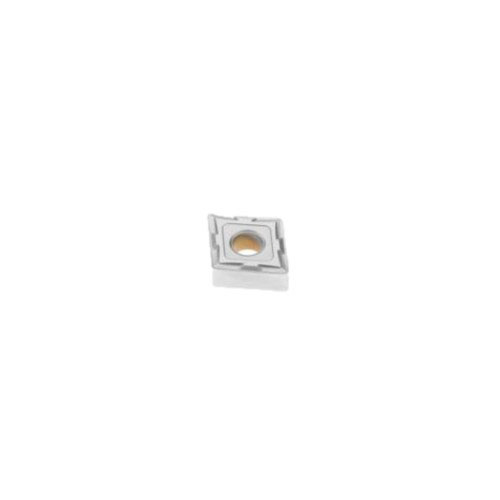

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF2 Grade TK0501 ± 0.13/± 0.05mm Tolerance CNMG120408-MF2,TK0501 - Pack of 10
Turning Insert CNMG Insert Style - MF2 Grade TK0501
$227.84
