Description

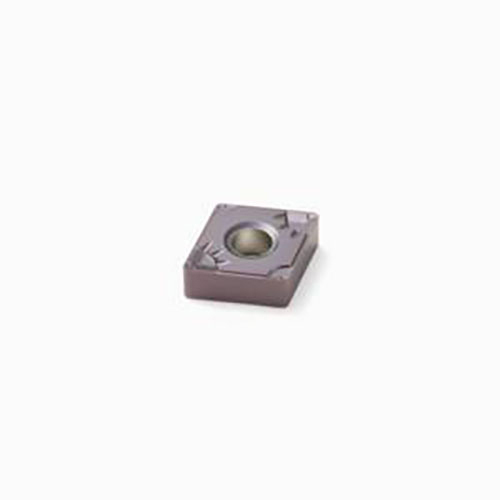

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - W-MF5 Grade TH1000 ± 0.13/± 0.05mm Tolerance CNMG120408W-MF5,TH1000 10pcs

Turning Insert CNMG Insert Style - W-MF5 Grade TH1000

  • C shape code.
  • G insert type, with hole and chipbreaker on both faces.
  • TH1000 insert grade.

TH1000 Insert Grade

  • A very hard super micro-grain grade intended for partly hardened steel components as well as generally workpiece materials such as superalloys and due to remarkable edge toughness it also provides high performance in interrupted cuts and hard-surface removal.
  • Ti-Al-Si-N nanolaminate coating.

W-MF5 Chipbreaker Prog.ramme

  • Chipbreaker intended for medium finishing of steel at high feed.
  • The geometry is very open and highly positive and equipped with wiper radius.
  • Indicative machining range: f = 0,2-0,8 mm/rev, ap = 0,2-2,7 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • To boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118388
  • Brand Seco
  • Model Number 02998641
  • Barcode Number 98641029001002
  • Designation CNMG120408W-MF5 TH1000
  • Type Turning Insert
  • Insert Shape Code (SC) C
  • Chipbreaker Programme W-MF5
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Clearance Angle Major (an) Deg 0.0 deg
  • Inscribed Circle Diameter (IC) mm 12.7
  • Insert Style CNMG
  • Insert Grade Grade TH1000
  • Insert Seat Size Code (SSC) 12
  • Corner Radius (RE) mm 0.8
  • Insert Thickness (S) mm 4.76
  • Cutting Edge Effective Length (LE) mm 2.7
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 4
  • Grade Type Carbide PVD
  • Grade TH1000

Video

SKU: A0118388

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - W-MF5 Grade TH1000 ± 0.13/± 0.05mm Tolerance CNMG120408W-MF5,TH1000 - Pack of 10

Turning Insert CNMG Insert Style - W-MF5 Grade TH1000

$270.74
