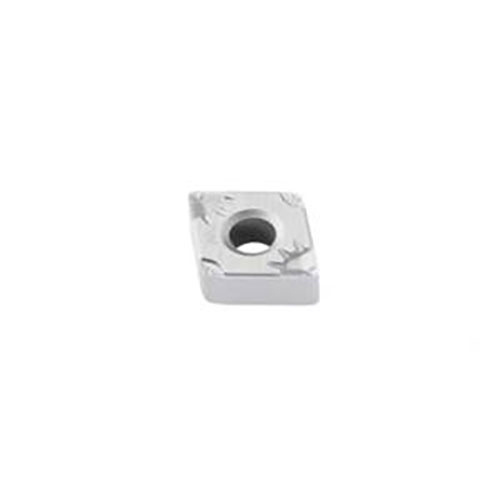

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - W-MF5 Grade TK0501 ± 0.13/± 0.05mm Tolerance CNMG120408W-MF5,TK0501 - Pack of 10

Description

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - W-MF5 Grade TK0501 ± 0.13/± 0.05mm Tolerance CNMG120408W-MF5,TK0501 10pcs

Turning Insert CNMG Insert Style - W-MF5 Grade TK0501

C shape code.
G insert type, with hole and chipbreaker on both faces.
TK0501 insert grade.

TK0501 Insert Grade

Duratomic® grade.
An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF5 Chipbreaker Prog.ramme

Chipbreaker intended for medium finishing of steel at high feed.
The geometry is very open and highly positive and equipped with wiper radius.
Indicative machining range: f = 0,2-0,8 mm/rev, ap = 0,2-2,7 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0118394

Brand Seco

Model Number 03062520

Barcode Number 62520030001001

Designation CNMG120408W-MF5 TK0501

Type Turning Insert

Insert Shape Code (SC) C

Chipbreaker Programme W-MF5

Theoretical Cutting Edge Length (L) mm 12.9

Insert Included Angle (epsr) Deg 80.0 deg

Fixing Hole Diameter (d1) Mm 5.2

Clearance Angle Major (an) Deg 0.0 deg

Inscribed Circle Diameter (IC) mm 12.7

Insert Style CNMG

Insert Grade Grade TK0501

Insert Seat Size Code (SSC) 12

Corner Radius (RE) mm 0.8

Insert Thickness (S) mm 4.76

Cutting Edge Effective Length (LE) mm 2.7

Insert Hand (IH) Neutral

Cutting Edge Count (CEDC) 4

Grade Type Carbide CVD

Grade TK0501
