Description

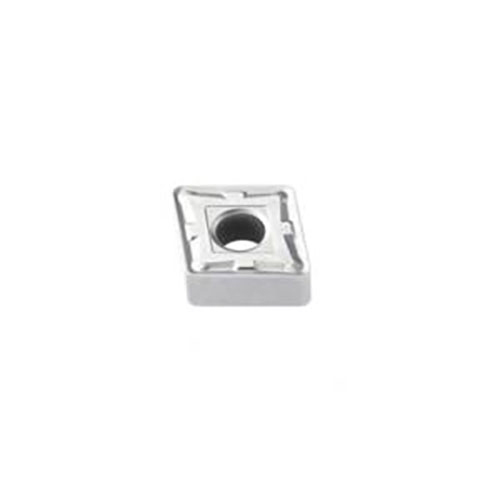

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M3 Grade TK1501 ± 0.13/± 0.05mm Tolerance CNMG120408-M3,TK1501 10pcs

Turning Insert CNMG Insert Style - M3 Grade TK1501

  • C shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TK1501 insert grade.

TK1501 Insert Grade

  • Duratomic® grade.
  • A highly wear-resistant grade for cast irons in general as well as in steels.
  • The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

  • First choice for medium-rough machining and also the most versatile Seco chipbreaker.
  • In most cases, it is the only chipbreaker needed.
  • It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
  • Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
  • Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118398
  • Brand Seco
  • Model Number 03064477
  • Barcode Number 64477030001006
  • Type Turning Insert
  • Designation CNMG120408-M3 TK1501
  • Grade TK1501
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Shape Code (SC) C
  • Insert Grade Grade TK1501
  • Insert Style CNMG
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Chipbreaker Programme M3
SKU: A0118398

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M3 Grade TK1501 ± 0.13/± 0.05mm Tolerance CNMG120408-M3,TK1501 - Pack of 10

Turning Insert CNMG Insert Style - M3 Grade TK1501

$227.84
