Description

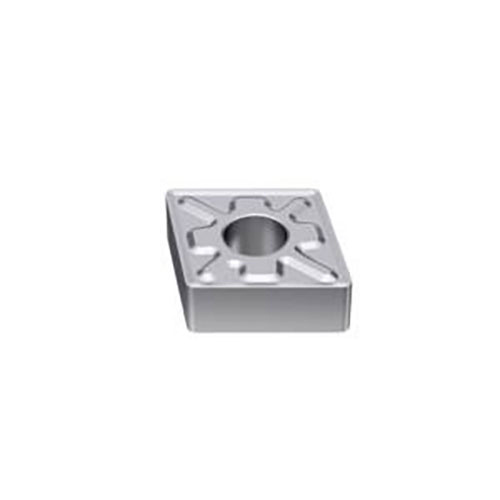

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF3 Grade TK1501 ± 0.13/± 0.05mm Tolerance CNMG120408-MF3,TK1501 10pcs

Turning Insert CNMG Insert Style - MF3 Grade TK1501

  • C shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TK1501 insert grade.

TK1501 Insert Grade

  • Duratomic® grade.
  • A highly wear-resistant grade for cast irons in general as well as in steels.
  • The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF3 Chipbreaker Programme

  • Chipbreaker with a positive cutting rake angle intended for moderately difficult stainless steel.
  • The MF3 is also intended for light roughing in relatively soft, “tacky” steel and difficult to machine stainless steel if the depth of cut is limited.
  • MF3 can also be used for finishing of cast iron.
  • Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1–4 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118400
  • Brand Seco
  • Model Number 03064481
  • Barcode Number 64481030001003
  • Type Turning Insert
  • Designation CNMG120408-MF3 TK1501
  • Grade TK1501
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Shape Code (SC) C
  • Insert Grade Grade TK1501
  • Insert Style CNMG
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Chipbreaker Programme MF3
SKU: A0118400

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF3 Grade TK1501 ± 0.13/± 0.05mm Tolerance CNMG120408-MF3,TK1501 - Pack of 10

Turning Insert CNMG Insert Style - MF3 Grade TK1501

$227.84
