Description

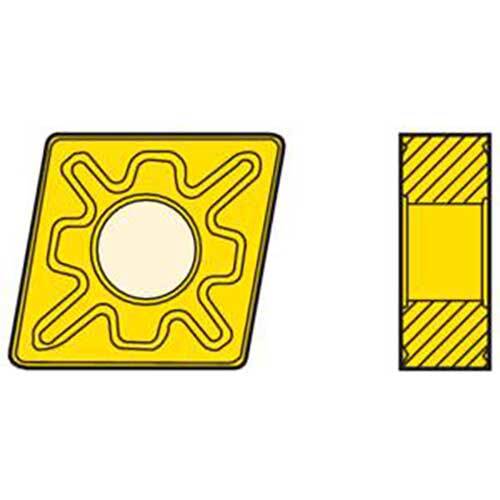

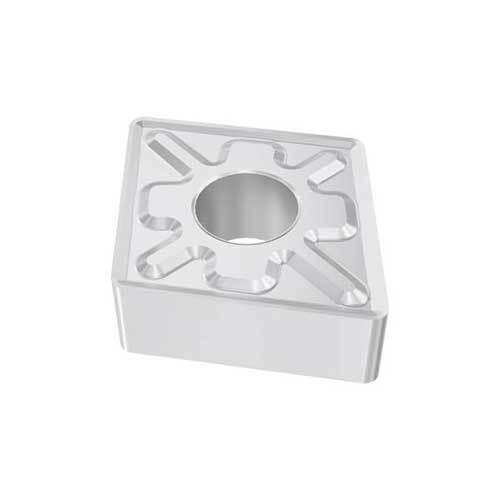

Turning Insert CNMG Insert Style - MF3 Grade TP25

  • C shape code
  • G Insert Type.

TP25 Insert Grade

  • The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
  • Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF3 Chipbreaker Programme

  • Chipbreaker with a positive cutting rake angle intended for moderately difficult stainless steel.
  • The MF3 is also intended for light roughing in relatively soft, “tacky” steel and difficult to machine stainless steel if the depth of cut is limited.
  • MF3 can also be used for the finishing cast iron.
  • Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1–4 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158540
  • Brand Seco
  • Model Number 03275998
  • Net Weight (kg) 0.009
  • Type Turning Insert
  • Grade TP25
  • Grade Type Carbide CVD:Designation:CNMG120408-MF3 TP25
  • Cutting Edge Count (CEDC) 4

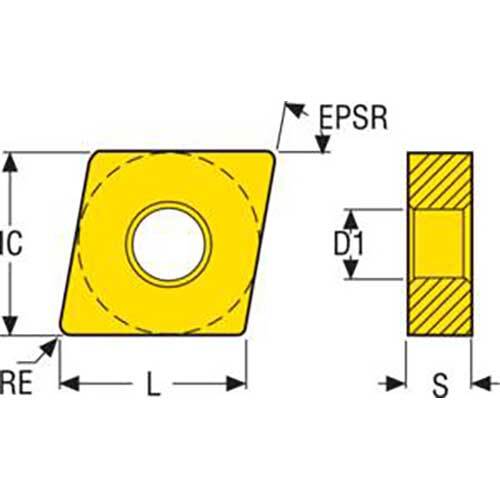

  • Insert Included Angle (EPSR) 80.0 deg
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 12.08
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Chip Breaker Manufacturers Designation (CBMD) MF3
  • Insert Seat Size Code (SSC) mm 12
SKU: A0158540

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF3 Grade TP25 ± 0.13/± 0.08mm CNMG120408-MF3 Pack of 10

Turning Insert CNMG Insert Style - MF3 Grade TP25

$217.36
