Description

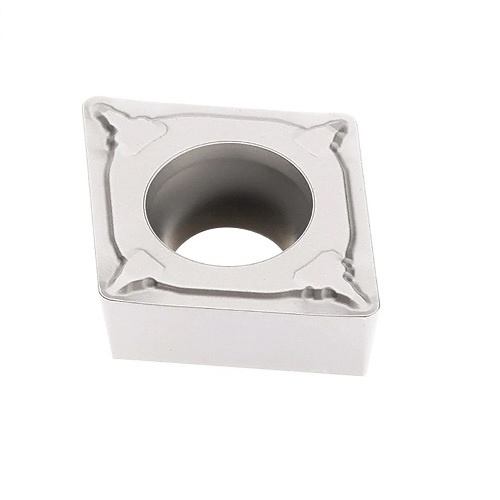

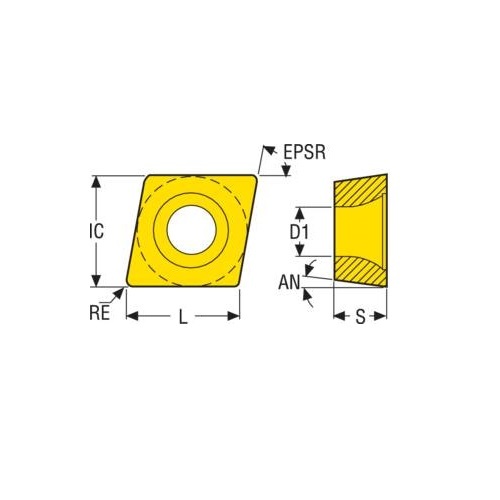

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm T Insert Type - F1 7° Grade TK1501 ± 0.13/± 0.08mm CCMT120408-F1 Pack of 10

Turning Insert C Shape Code T Insert Type - F1 7° Grade TK1501 - ± 0.13/± 0.08mm Tolerance

TK1501 Insert Grade

CVD Coated.
Duratomic® grade. A highly wear-resistant grade for cast irons in general as well as in steels.
The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

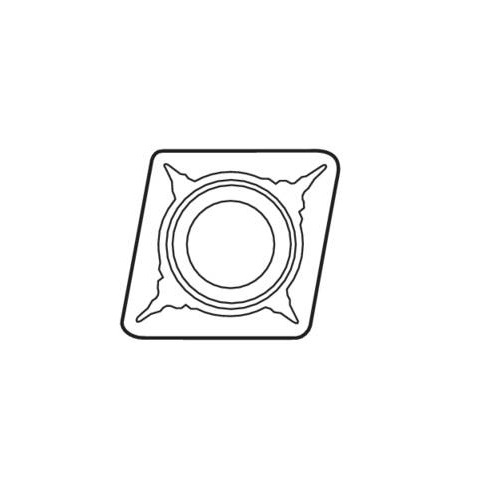

F1 Chipbreaker Programme

Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
