Description

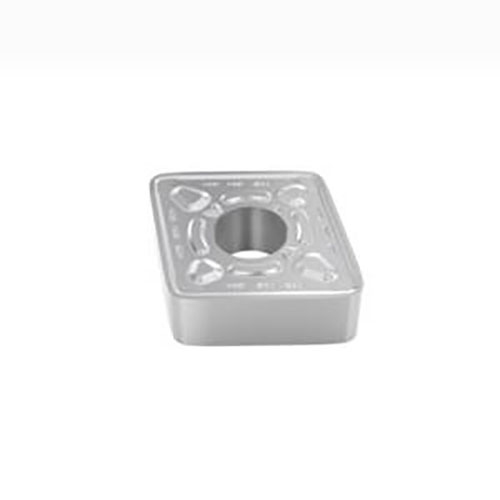

Seco Turning Insert C Shape Code 4.76 x 1.2 x 12.7mm G Insert Type - W-M6 Grade TP1501 ± 0.13/± 0.05mm Tolerance CNMG120412W-M6,TP1501 10pcs

Turning Insert CNMG Insert Style - W-M6 Grade TP1501 4.76mm Insert Thickness (S)

TP1501 Insert Grade

Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-M6 Chipbreaker Programme

Strong double-sided chipbreaker, intended for high-feed semi-roughing and roughing of steel.
A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts.
Indicative machining range: f = 0,3-1,0 mm/rev, ap = 1,0-7,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
