Description

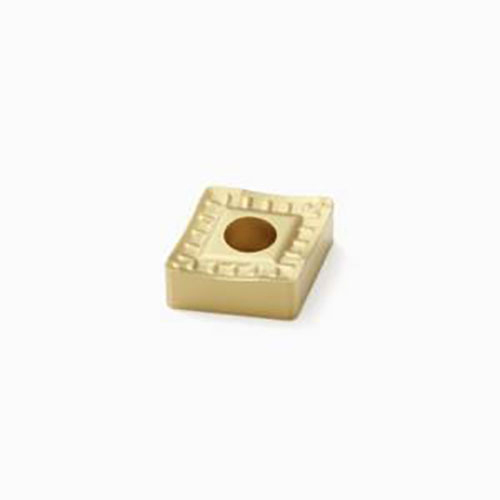

Seco Turning Insert C Shape Code 4.76 x 1.2 x 12.7mm M Insert Type - R4 Grade TP40 ± 0.13/± 0.05mm Tolerance CNMM120412-R4,TP40 10pcs

Turning Insert CNMM Insert Style - R4 Grade TP40

TP40 Insert Grade

Universal grade for a extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
TiC/Ti(C,N) + TiN.

R4 Chipbreaker Programme

Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces.
Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
