Description

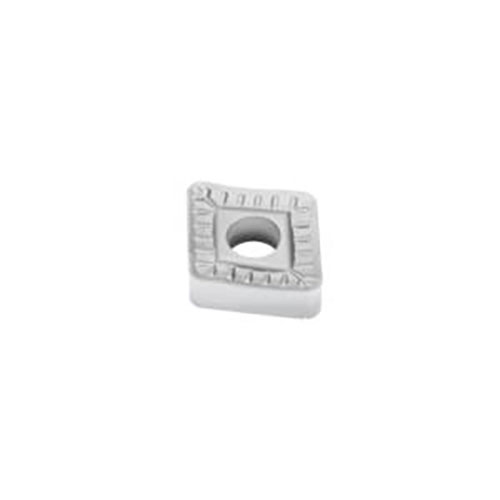

Seco Turning Insert C Shape Code 4.76 x 1.6 x 12.7mm M Insert Type - R4 Grade TP1501 ± 0.13/± 0.05mm Tolerance CNMM120416-R4,TP1501 10pcs

Turning Insert CNMM Insert Style - R4 Grade TP1501 1.6mm Corner Radius (RE)

TP1501 Insert Grade

Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R4 Chipbreaker Programme

Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces.
Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
