Description

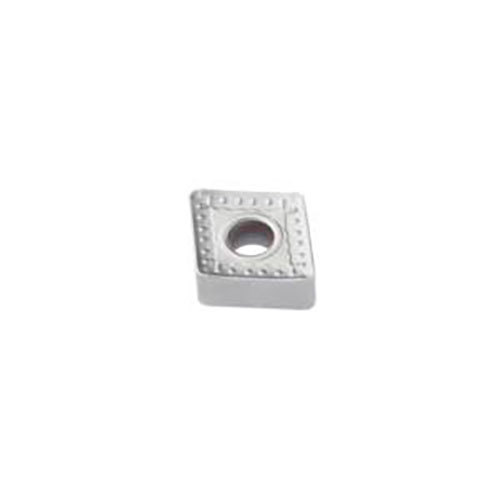

Seco Turning Insert C Shape Code 6.35 x 1.6 x 15.88mm M Insert Type - R5 Grade TP1501 ± 0.13/± 0.05mm Tolerance CNMM160616-R5,TP1501 10pcs

Turning Insert CNMM Insert Style - R5 Grade TP1501

  • C shape code.
  • M insert type, with hole and chipbreaker on one face only.
  • TP1501 insert grade.

TP0501 Insert Grade

  • Duratomic® grade.
  • Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R5 Chipbreaker Programme

  • Chipbreaker for single-sided inserts. Recommended for medium-roughing of steel.
  • Indicative machining range: f = 0,3–1,0 mm/rev, ap = 2–12 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • To boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118446
  • Brand Seco
  • Model Number 02960664
  • Barcode Number 60664029001008
  • Type Turning Insert
  • Designation CNMM160616-R5 TP1501
  • Grade TP1501
  • Insert Thickness (S) mm 6.35
  • Corner Radius (RE) mm 1.6
  • Insert Shape Code (SC) C
  • Insert Grade Grade TP1501
  • Insert Style CNMM
  • Inscribed Circle Diameter (IC) mm 15.88
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 6.4
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 16.1
  • Chipbreaker Programme R5
SKU: A0118446

Seco Turning Insert C Shape Code 6.35 x 1.6 x 15.88mm M Insert Type - R5 Grade TP1501 ± 0.13/± 0.05mm Tolerance CNMM160616-R5,TP1501 - Pack of 10

Turning Insert CNMM Insert Style - R5 Grade TP1501

$358.46
