Description

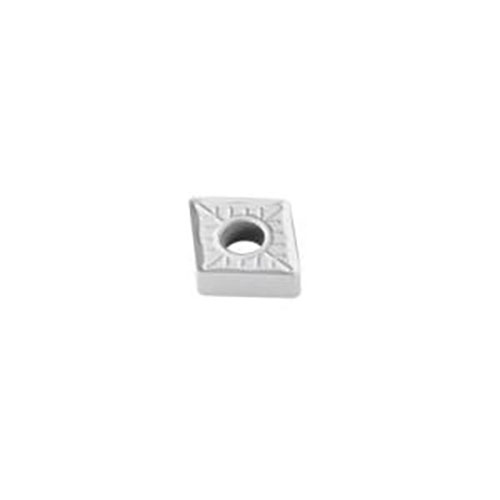

Seco Turning Insert C Shape Code 6.35 x 2.4 x 19.05mm M Insert Type - W-R7 Grade TP0501 ± 0.13/± 0.05mm Tolerance CNMM190624W-R7,TP0501 10pcs

Turning Insert CNMM Insert Style - W-R7 Grade TP0501

TP0501 Insert Grade

Duratomic® grade.
A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-R7 Chipbreaker Prog.ramme

A strong easy cutting chipbreaker for single-sided inserts.
Intended for the highest feeds when medium roughing and roughing machining of steel, stainless steel and cast iron.
Gives a good surface finish even at the higher feeds.
Indicative machining range: f = 0,4-1,2 mm/rev, ap = 2,0-9,5 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
