Description

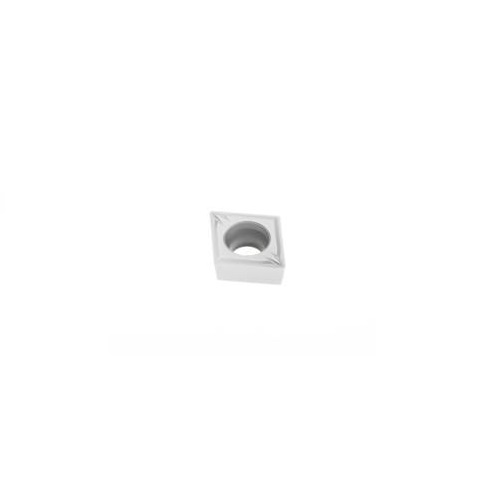

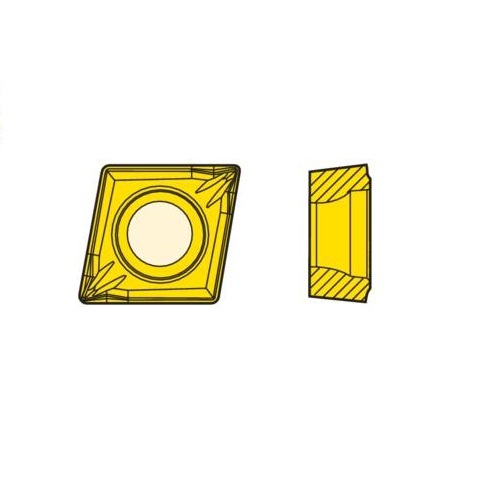

Turning Insert C Shape Code T Insert Type - MF2 7° Grade TP2501 - ± 0.13/± 0.05mm Tolerance - 0.2mm Corner Radius

TP2501 Insert Grade

CVD Coated.
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
