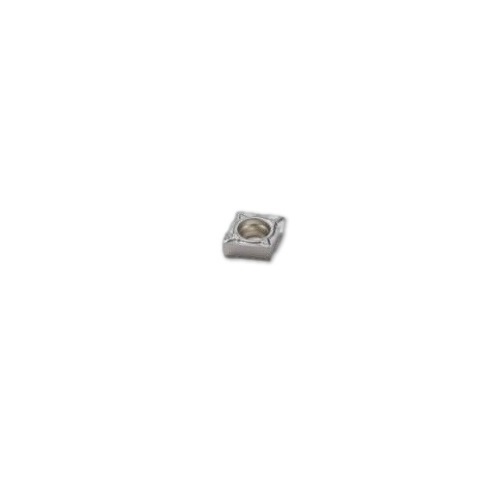

Seco Turning Insert CCMT Insert Style - W-F1 7° Grade TP1030 - SECO

Description

Turning Insert C Shape Code T Insert Type - W-F1 7° Grade TP1030

C shape code.
T Insert Type.
7° insert side clearance angles.

TP1030 Insert Grade

Cermet.
Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels.
Ti-Al-Si-N nanolaminate coating.

W-F1 Chipbreaker Programme

A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
Suitable for high feed rates at small depths of cut.
Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0115704

Brand Seco

Model Number 02754801

Barcode Number 54801027001008

Designation CCMT060204W-F1,TP1030

Fixing Hole Diameter D1 Mm 2.9

Chipbreaker Programme W-F1

Tolerance ñ 0.05/ñ 0.05mm

Theoretical Cutting Edge Length (L) mm 6.5

Insert Included Angle (epsr) Deg 80.0 deg

Fixing Hole Diameter (d1) Mm 2.9

Clearance Angle Major (an) Deg 7.0 deg

Inscribed Circle Diameter (IC) mm 6.35

Grade Grade TP1030

Insert Shape Code (SC) C

Insert Seat Size Code (SSC) 6

Corner Radius (RE) mm 0.4

Insert Thickness (S) mm 2.38

Cutting Edge Effective Length (LE) mm 6.1

Insert Hand (IH) Neutral

Cutting Edge Count (CEDC) 2

Grade Type Cermet PVD

Type Turning Insert
Insert Grade Grade TP1030
Insert Style CCMT
