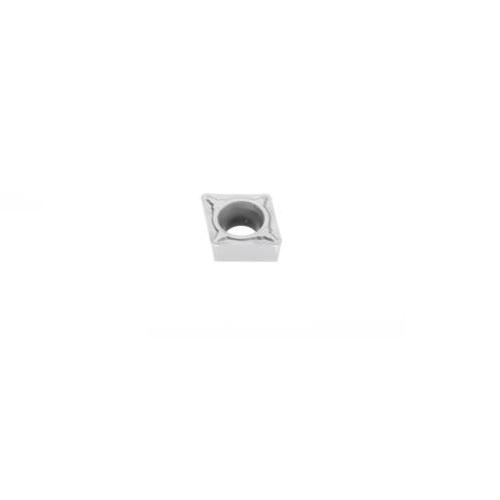

Seco Turning Insert CCMT Insert Style - W-F1 7° Grade TP1501 - SECO

Description

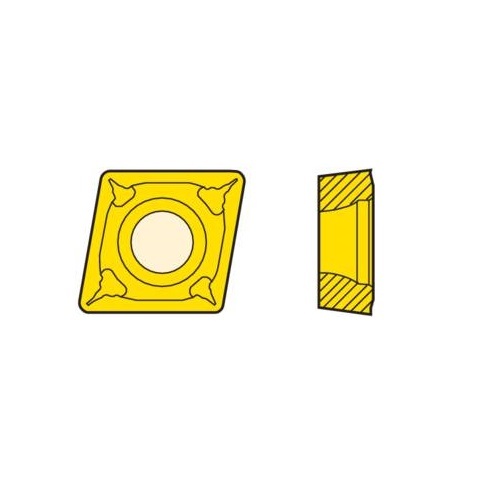

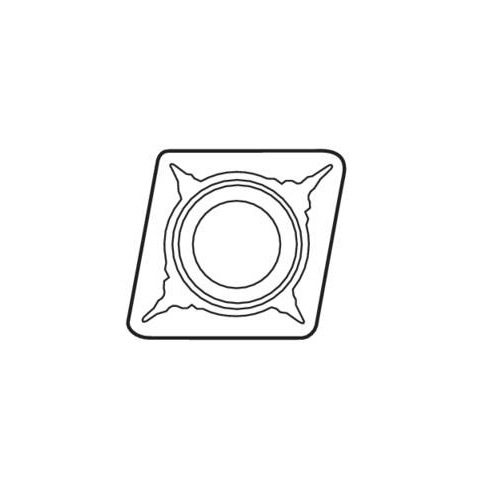

Turning Insert C Shape Code T Insert Type - W-F1 7° Grade TP1501 - ± 0.13/± 0.05mm Tolerance

C shape code.
T Insert Type.
7° insert side clearance angles.
± 0.13/± 0.05mm tolerance.
Chamfered cutting edges.

TP1501 Insert Grade

CVD Coated.
Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-F1 Chipbreaker Programme

A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
Suitable for high feed rates at small depths of cut.
Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0115706

Brand Seco

Model Number 02960825

Barcode Number 60825029001003

Designation CCMT09T304W-F1,TP1501

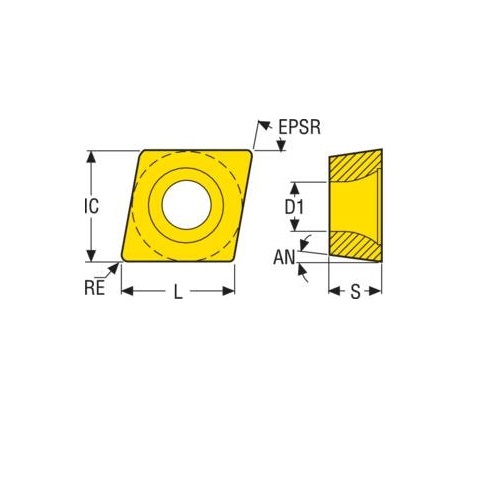

Fixing Hole Diameter D1 Mm 4.5

Chipbreaker Programme W-F1

Tolerance ñ 0.13/ñ 0.05mm

Theoretical Cutting Edge Length (L) mm 9.7

Insert Included Angle (epsr) Deg 80.0 deg

Fixing Hole Diameter (d1) Mm 4.5

Clearance Angle Major (an) Deg 7.0 deg

Inscribed Circle Diameter (IC) mm 9.53

Grade Grade TP1501

Insert Shape Code (SC) C

Insert Seat Size Code (SSC) 9

Corner Radius (RE) mm 0.4

Insert Thickness (S) mm 3.97

Cutting Edge Effective Length (LE) mm 9.3

Insert Hand (IH) Neutral

Cutting Edge Count (CEDC) 2

Grade Type Carbide CVD

Type Turning Insert
Insert Grade Grade TP1501
Insert Style CCMT
