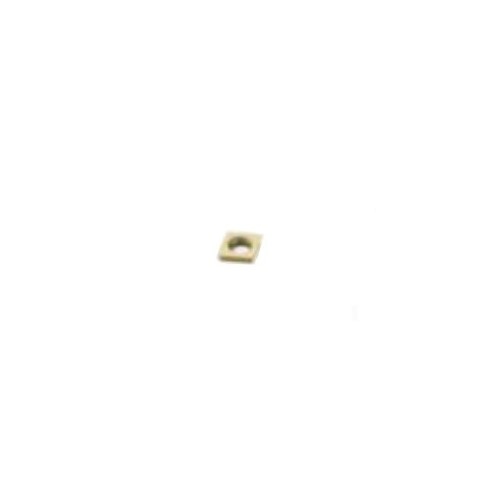

Seco Turning Insert CDCB Insert Style 15° Grade CP500 - SECO

Description

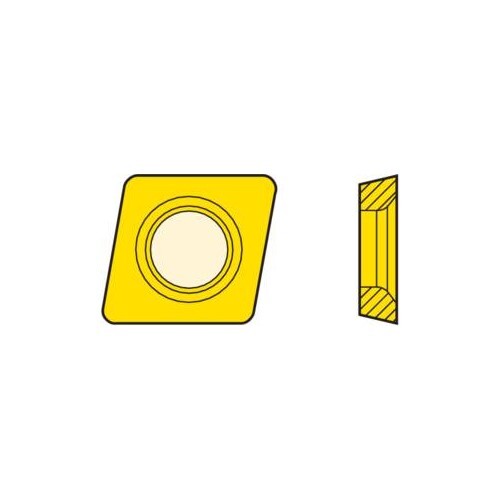

Turning Insert C Shape Code B Insert Type 15° Grade CP500

C shape code
B Insert Type.
15° insert side clearance angles.
± 0.025/± 0.025mm tolerance.

CP500 Insert Grade

PVD coated.
Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
Especially suitable in intermittent cuts.
(Ti, Al)N + TiN.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0115947

Brand Seco

Model Number 02723695

Barcode Number 23695027001003

Designation CDCB04T0005,CP500

Grade Grade CP500

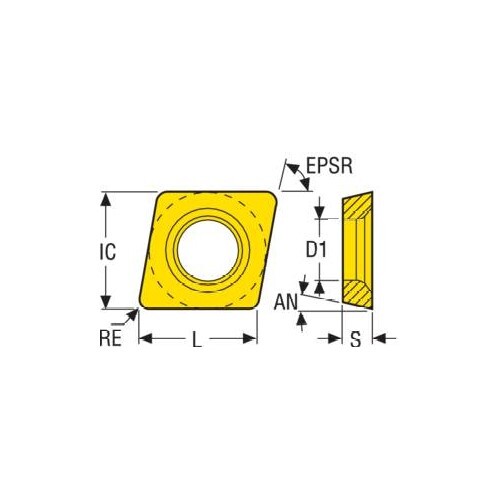

Insert Thickness (S) mm 0.97

Corner Radius (RE) mm 0.05

Insert Shape Code (SC) C

Fixing Hole Diameter D1 Mm 2

Inscribed Circle Diameter (IC) mm 3.97

Clearance Angle Major (an) Deg 15.0 deg

Fixing Hole Diameter (d1) Mm 2

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 4.03

Tolerance ñ 0.025/ñ 0.025mm

Type Turning Insert
Insert Grade Grade CP500
Insert Style CDCB
