Seco Turning Insert CDCB Insert Style 15° Grade TS2500 - SECO

Description

Turning Insert C Shape Code B Insert Type 15° Grade TS2500

C shape code
B Insert Type.
15° insert side clearance angles.
± 0.025/± 0.025mm tolerance.

TS2500 Insert Grade

PVD coated.
Relatively hard micrograin grade for machining of superalloys and titanium in roughing applications and due to its design also applicable in a wide range of materials such as stainless steel.
(Ti, Al)N + TiN.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0115950

Brand Seco

Model Number 02868495

Barcode Number 68495028001001

Designation CDCB04T002,TS2500

Grade Grade TS2500

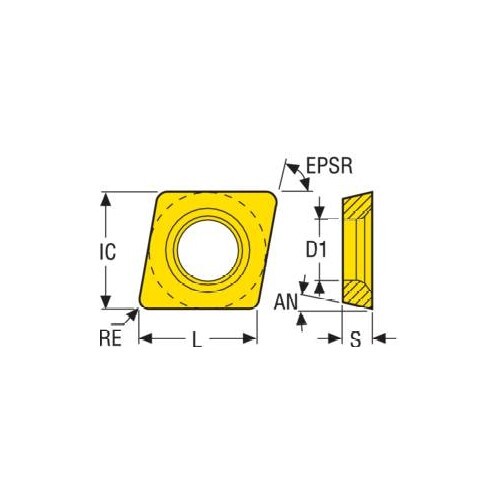

Insert Thickness (S) mm 0.97

Corner Radius (RE) mm 0.2

Insert Shape Code (SC) C

Fixing Hole Diameter D1 Mm 2

Inscribed Circle Diameter (IC) mm 3.97

Clearance Angle Major (an) Deg 15.0 deg

Fixing Hole Diameter (d1) Mm 2

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 4.03

Tolerance ñ 0.025/ñ 0.025mm

Type Turning Insert
Insert Grade Grade TS2500
Insert Style CDCB
