Description

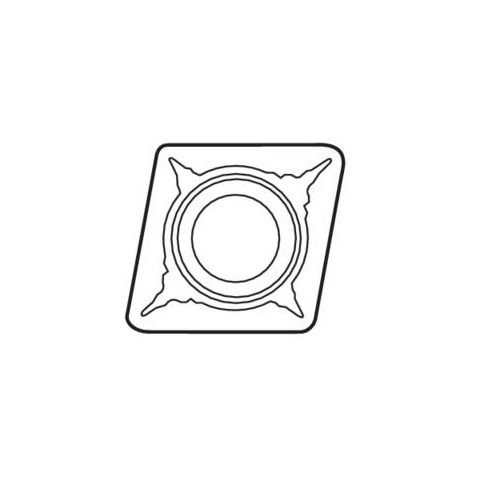

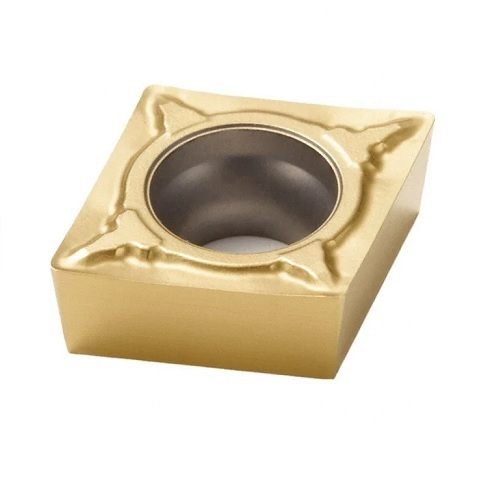

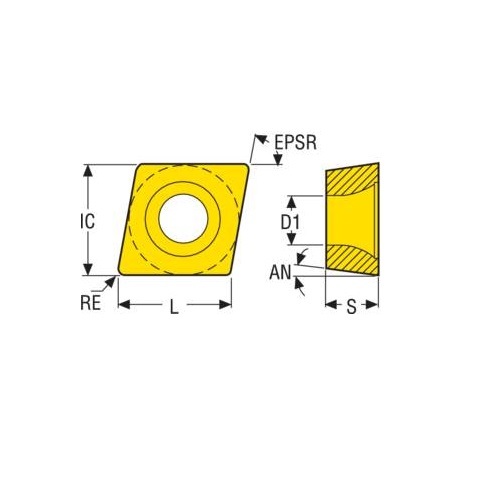

Turning Insert C Shape Code T Insert Type - F1 11° Grade CP500

CP500 Insert Grade

PVD coated.
Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
Especially suitable in intermittent cuts.
(Ti, Al)N + TiN.

F1 Chipbreaker Programme

Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
