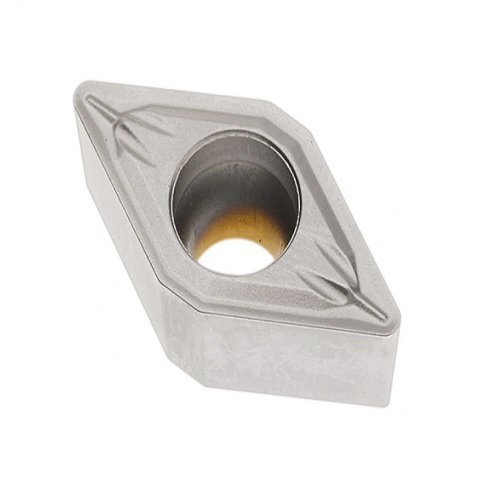

Seco Turning Insert D Shape Code 2.38 x 0.4 x 6.35mm T Insert Type - MF2 7° Grade TP2501 ± 0.05/± 0.05mm DCMT070204-MF2 Pack of 10

Turning Insert D Shape Code T Insert Type - MF2 7° Grade TP2501 - ± 0.05/± 0.05mm Tolerance - 0.4mm Corner Radius

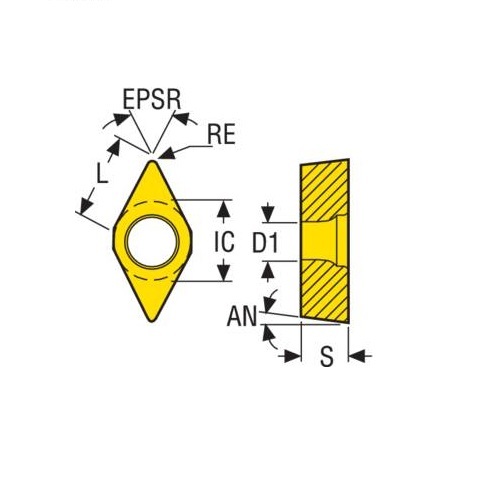

• D shape code
• T Insert Type.
• 7° insert side clearance angles.
• ± 0.05/± 0.05mm tolerance.
• 0.4mm corner radius (RE).

TP2501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

• A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
• Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
• Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
