Description

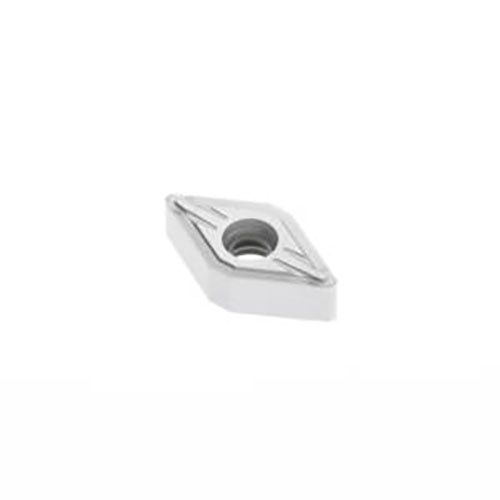

Seco Turning Insert D Shape Code 4.76 x 0.4 x 9.53mm U Insert Type - FF2 Grade TP1501 ± 0.13/± 0.05mm Tolerance DNMU110404-FF2,TP1501 10pcs

Turning Insert DNMU Insert Style - FF2 Grade TP1501

D shape code.
U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only.
TP1501 insert grade.

TP1501 Insert Grade

Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

FF2 Chipbreaker Programme

Chipbreaker for negative inserts. Intended for fine-finishing and semi-finishing of steels and stainless steels.
The positive, tight chip groove offers light cutting action combined with superior chip forming.
Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–1,5 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
